Java Puzzle game
last modified January 10, 2023
In this part of the Java games tutorial, we create a Java Puzzle game clone. The source code and the image can be foud at the author's Github Puzzle-game-in-Java-Swing repository.
Java puzzle game points
- Using Swing and Java 2D graphics to build the game.
- Randomly shuffling buttons with
Collections.shuffle(). - Loading image with
ImageIO.read(). - Resizing image with
BufferedImage. - Cropping image with
CropImageFilter. - Layout out buttons with
GridLayout. - Using two
ArrayListsof points to check for solution.
Java puzzle game example
The goal of this little game is to form a picture. Buttons containing images are moved by clicking on them. Only buttons adjacent to the empty button can be moved.
package com.zetcode;
import java.awt.BorderLayout;
import java.awt.Color;
import java.awt.EventQueue;
import java.awt.Graphics2D;
import java.awt.GridLayout;
import java.awt.Image;
import java.awt.Point;
import java.awt.event.ActionEvent;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;
import java.awt.image.BufferedImage;
import java.awt.image.CropImageFilter;
import java.awt.image.FilteredImageSource;
import java.io.File;
import java.io.IOException;
import java.util.ArrayList;
import java.util.Collections;
import java.util.List;
import java.util.logging.Level;
import java.util.logging.Logger;
import javax.imageio.ImageIO;
import javax.swing.AbstractAction;
import javax.swing.BorderFactory;
import javax.swing.ImageIcon;
import javax.swing.JButton;
import javax.swing.JComponent;
import javax.swing.JFrame;
import javax.swing.JOptionPane;
import javax.swing.JPanel;
class MyButton extends JButton {
private boolean isLastButton;
public MyButton() {
super();
initUI();
}
public MyButton(Image image) {
super(new ImageIcon(image));
initUI();
}
private void initUI() {
isLastButton = false;
BorderFactory.createLineBorder(Color.gray);
addMouseListener(new MouseAdapter() {
@Override
public void mouseEntered(MouseEvent e) {
setBorder(BorderFactory.createLineBorder(Color.yellow));
}
@Override
public void mouseExited(MouseEvent e) {
setBorder(BorderFactory.createLineBorder(Color.gray));
}
});
}
public void setLastButton() {
isLastButton = true;
}
public boolean isLastButton() {
return isLastButton;
}
}
public class PuzzleEx extends JFrame {
private JPanel panel;
private BufferedImage source;
private BufferedImage resized;
private Image image;
private MyButton lastButton;
private int width, height;
private List<MyButton> buttons;
private List<Point> solution;
private final int NUMBER_OF_BUTTONS = 12;
private final int DESIRED_WIDTH = 300;
public PuzzleEx() {
initUI();
}
private void initUI() {
solution = new ArrayList<>();
solution.add(new Point(0, 0));
solution.add(new Point(0, 1));
solution.add(new Point(0, 2));
solution.add(new Point(1, 0));
solution.add(new Point(1, 1));
solution.add(new Point(1, 2));
solution.add(new Point(2, 0));
solution.add(new Point(2, 1));
solution.add(new Point(2, 2));
solution.add(new Point(3, 0));
solution.add(new Point(3, 1));
solution.add(new Point(3, 2));
buttons = new ArrayList<>();
panel = new JPanel();
panel.setBorder(BorderFactory.createLineBorder(Color.gray));
panel.setLayout(new GridLayout(4, 3, 0, 0));
try {
source = loadImage();
int h = getNewHeight(source.getWidth(), source.getHeight());
resized = resizeImage(source, DESIRED_WIDTH, h,
BufferedImage.TYPE_INT_ARGB);
} catch (IOException ex) {
Logger.getLogger(PuzzleEx.class.getName()).log(
Level.SEVERE, null, ex);
}
width = resized.getWidth(null);
height = resized.getHeight(null);
add(panel, BorderLayout.CENTER);
for (int i = 0; i < 4; i++) {
for (int j = 0; j < 3; j++) {
image = createImage(new FilteredImageSource(resized.getSource(),
new CropImageFilter(j * width / 3, i * height / 4,
(width / 3), height / 4)));
MyButton button = new MyButton(image);
button.putClientProperty("position", new Point(i, j));
if (i == 3 && j == 2) {
lastButton = new MyButton();
lastButton.setBorderPainted(false);
lastButton.setContentAreaFilled(false);
lastButton.setLastButton();
lastButton.putClientProperty("position", new Point(i, j));
} else {
buttons.add(button);
}
}
}
Collections.shuffle(buttons);
buttons.add(lastButton);
for (int i = 0; i < NUMBER_OF_BUTTONS; i++) {
MyButton btn = buttons.get(i);
panel.add(btn);
btn.setBorder(BorderFactory.createLineBorder(Color.gray));
btn.addActionListener(new ClickAction());
}
pack();
setTitle("Puzzle");
setResizable(false);
setLocationRelativeTo(null);
setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
}
private int getNewHeight(int w, int h) {
double ratio = DESIRED_WIDTH / (double) w;
int newHeight = (int) (h * ratio);
return newHeight;
}
private BufferedImage loadImage() throws IOException {
BufferedImage bimg = ImageIO.read(new File("src/resources/icesid.jpg"));
return bimg;
}
private BufferedImage resizeImage(BufferedImage originalImage, int width,
int height, int type) throws IOException {
BufferedImage resizedImage = new BufferedImage(width, height, type);
Graphics2D g = resizedImage.createGraphics();
g.drawImage(originalImage, 0, 0, width, height, null);
g.dispose();
return resizedImage;
}
private class ClickAction extends AbstractAction {
@Override
public void actionPerformed(ActionEvent e) {
checkButton(e);
checkSolution();
}
private void checkButton(ActionEvent e) {
int lidx = 0;
for (MyButton button : buttons) {
if (button.isLastButton()) {
lidx = buttons.indexOf(button);
}
}
JButton button = (JButton) e.getSource();
int bidx = buttons.indexOf(button);
if ((bidx - 1 == lidx) || (bidx + 1 == lidx)
|| (bidx - 3 == lidx) || (bidx + 3 == lidx)) {
Collections.swap(buttons, bidx, lidx);
updateButtons();
}
}
private void updateButtons() {
panel.removeAll();
for (JComponent btn : buttons) {
panel.add(btn);
}
panel.validate();
}
}
private void checkSolution() {
List<Point> current = new ArrayList<>();
for (JComponent btn : buttons) {
current.add((Point) btn.getClientProperty("position"));
}
if (compareList(solution, current)) {
JOptionPane.showMessageDialog(panel, "Finished",
"Congratulation", JOptionPane.INFORMATION_MESSAGE);
}
}
public static boolean compareList(List ls1, List ls2) {
return ls1.toString().contentEquals(ls2.toString());
}
public static void main(String[] args) {
EventQueue.invokeLater(new Runnable() {
@Override
public void run() {
PuzzleEx puzzle = new PuzzleEx();
puzzle.setVisible(true);
}
});
}
}

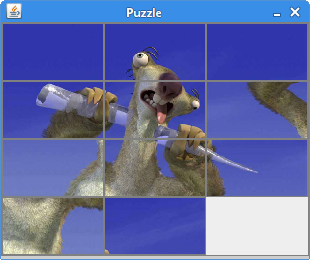

We use an image of a Sid character from the Ice Age movie.
We scale the image and cut it into twelve pieces. These pieces
are used by JButton components. The last piece
is not used; we have an empty button instead. You can
download some reasonably large picture and use it in this game.
addMouseListener(new MouseAdapter() {
@Override
public void mouseEntered(MouseEvent e) {
setBorder(BorderFactory.createLineBorder(Color.yellow));
}
@Override
public void mouseExited(MouseEvent e) {
setBorder(BorderFactory.createLineBorder(Color.gray));
}
});
When we hover a mouse pointer over the button, its border changes to yellow colour.
public boolean isLastButton() {
return isLastButton;
}
There is one button that we call the last button. It is a button that does not have an image. Other buttons swap space with this one.
private final int DESIRED_WIDTH = 300;
The image that we use to form is scaled to have the desired width. With the
getNewHeight() method we calculate the new height, keeping the
image's ratio.
solution.add(new Point(0, 0)); solution.add(new Point(0, 1)); solution.add(new Point(0, 2)); solution.add(new Point(1, 0)); ...
The solution array list stores the correct order of buttons which forms
the image. Each button is identified by one Point.
panel.setLayout(new GridLayout(4, 3, 0, 0));
We use a GridLayout to store our components. The layout consists
of 4 rows and 3 columns.
image = createImage(new FilteredImageSource(resized.getSource(),
new CropImageFilter(j * width / 3, i * height / 4,
(width / 3), height / 4)));
CropImageFilter is used to cut a rectangular shape from
the already resized image source. It is meant to be used in conjunction
with a FilteredImageSource object to produce cropped
versions of existing images.
button.putClientProperty("position", new Point(i, j));
Buttons are identified by their position client property.
It is a point containing the button's correct row and colum position
in the picture. These properties are used to find out if we have the
correct order of buttons in the window.
if (i == 3 && j == 2) {
lastButton = new MyButton();
lastButton.setBorderPainted(false);
lastButton.setContentAreaFilled(false);
lastButton.setLastButton();
lastButton.putClientProperty("position", new Point(i, j));
} else {
buttons.add(button);
}
The button with no image is called the last button; it is placed at the
end of the grid in the bottom-right corner. It is the button that swaps
its position with the adjacent button that is being clicked. We set its isLastButton
flag with the setLastButton() method.
Collections.shuffle(buttons); buttons.add(lastButton);
We randomly reorder the elements of the buttons list.
The last button, i.e. the button with no image, is inserted at
the end of the list. It is not supposed to be shuffled, it always
goes at the end when we start the Puzzle game.
for (int i = 0; i < NUMBER_OF_BUTTONS; i++) {
MyButton btn = buttons.get(i);
panel.add(btn);
btn.setBorder(BorderFactory.createLineBorder(Color.gray));
btn.addActionListener(new ClickAction());
}
All the components from the buttons list are placed
on the panel. We create some gray border around the buttons and
add a click action listener.
private int getNewHeight(int w, int h) {
double ratio = DESIRED_WIDTH / (double) w;
int newHeight = (int) (h * ratio);
return newHeight;
}
The getNewHeight() method calculates the height of the image
based on the desired width. The image's ratio is kept. We scale the image using these values.
private BufferedImage loadImage() throws IOException {
BufferedImage bimg = ImageIO.read(new File("src/resources/icesid.jpg"));
return bimg;
}
A JPG image is loaded from the disk. ImageIO's read()
method returns a BufferedImage, which is Swing's important class
for manipulating images.
private BufferedImage resizeImage(BufferedImage originalImage, int width,
int height, int type) throws IOException {
BufferedImage resizedImage = new BufferedImage(width, height, type);
Graphics2D g = resizedImage.createGraphics();
g.drawImage(originalImage, 0, 0, width, height, null);
g.dispose();
return resizedImage;
}
The original image is resized by creating a new BufferedImage with
new dimensions. We paint from the original image into this new buffered image.
private void checkButton(ActionEvent e) {
int lidx = 0;
for (MyButton button : buttons) {
if (button.isLastButton()) {
lidx = buttons.indexOf(button);
}
}
JButton button = (JButton) e.getSource();
int bidx = buttons.indexOf(button);
if ((bidx - 1 == lidx) || (bidx + 1 == lidx)
|| (bidx - 3 == lidx) || (bidx + 3 == lidx)) {
Collections.swap(buttons, bidx, lidx);
updateButtons();
}
}
Buttons are stored in an array list. This list is then mapped to the
grid of the panel. We get the indexes of the last button and the clicked
button. They are swapped using the Collections.swap() if they
are adjacent.
private void updateButtons() {
panel.removeAll();
for (JComponent btn : buttons) {
panel.add(btn);
}
panel.validate();
}
The updateButtons() method maps the list to the
panel's grid. First, all components are removed with the removeAll()
method. A for loop is used to go trough the buttons list
to add the reordered buttons back to the panel's layout manager.
Finally, the validate() method implements the new layout.
private void checkSolution() {
List<Point> current = new ArrayList<>();
for (JComponent btn : buttons) {
current.add((Point) btn.getClientProperty("position"));
}
if (compareList(solution, current)) {
JOptionPane.showMessageDialog(panel, "Finished",
"Congratulation", JOptionPane.INFORMATION_MESSAGE);
}
}
Solution checking is done by comparing the list of points of the correctly ordered buttons with the current list containg the order of buttons from the window. A message dialog is shown in case the solution is reached.
This was a Puzzle game created in Java.
