Text in Cairo

last modified July 13, 2020

In this part of the Cairo graphics tutorial, we will work with text.

Soulmate

In the first example, we will display some lyrics on the GTK+ window.

static void do_drawing(cairo_t *cr)
{
  cairo_set_source_rgb(cr, 0.1, 0.1, 0.1);

  cairo_select_font_face(cr, "Purisa",
      CAIRO_FONT_SLANT_NORMAL,
      CAIRO_FONT_WEIGHT_BOLD);

  cairo_set_font_size(cr, 13);

  cairo_move_to(cr, 20, 30);
  cairo_show_text(cr, "Most relationships seem so transitory");
  cairo_move_to(cr, 20, 60);
  cairo_show_text(cr, "They're all good but not the permanent one");

  cairo_move_to(cr, 20, 120);
  cairo_show_text(cr, "Who doesn't long for someone to hold");

  cairo_move_to(cr, 20, 150);
  cairo_show_text(cr, "Who knows how to love you without being told");
  cairo_move_to(cr, 20, 180);
  cairo_show_text(cr, "Somebody tell me why I'm on my own");
  cairo_move_to(cr, 20, 210);
  cairo_show_text(cr, "If there's a soulmate for everyone");
}

In this example, we display part of the lyrics from the Natasha Bedingfield's Soulmate song.

cairo_select_font_face(cr, "Purisa",
   CAIRO_FONT_SLANT_NORMAL,
   CAIRO_FONT_WEIGHT_BOLD);

Here we select the font face. The function takes three parameters, the font family, font slant and the font weight.

cairo_set_font_size(cr, 13);

Here we specify the font size.

cairo_move_to(cr, 20, 30);
cairo_show_text(cr, "Most relationships seem so transitory");

We display the text on the window by specifying the position of the text and calling the cairo_show_text() function.

Soulmate
Figure: Soulmate

Centered text

Next we will show, how to center text on the window.

static void do_drawing(cairo_t *cr, GtkWidget *widget)
{
  cairo_text_extents_t extents;

  GtkWidget *win = gtk_widget_get_toplevel(widget);

  gint w, h;
  gtk_window_get_size(GTK_WINDOW(win), &w, &h);

  cairo_select_font_face(cr, "Courier",
      CAIRO_FONT_SLANT_NORMAL,
      CAIRO_FONT_WEIGHT_BOLD);

  cairo_set_font_size(cr, 60);

  cairo_text_extents(cr, "ZetCode", &extents);

  cairo_move_to(cr, w/2 - extents.width/2, h/2);
  cairo_show_text(cr, "ZetCode");
}

The code will center a text on the window. It remains centered, even if we resize the window.

GtkWidget *win = gtk_widget_get_toplevel(widget);

gint w, h;
gtk_window_get_size(GTK_WINDOW(win), &w, &h);

To center a text on the window, it is necessary to get the size of of the parent window.

cairo_select_font_face(cr, "Courier",
    CAIRO_FONT_SLANT_NORMAL,
    CAIRO_FONT_WEIGHT_BOLD);

cairo_set_font_size(cr, 60);

We select a font and its size to be displayed.

cairo_text_extents(cr, "ZetCode", &extents);

We get the text extents. These are some numbers that describe the text. We need the width of the text for our example.

cairo_move_to(cr, w/2 - extents.width/2, h/2);
cairo_show_text(cr, "ZetCode");

We position the text into the middle of the window and show it using the cairo_show_text() method.

Centered text
Figure: Centered text

Shaded text

Now we will show a shaded text on the window.

static void do_drawing(cairo_t *cr, GtkWidget *widget)
{
  cairo_select_font_face(cr, "Serif", CAIRO_FONT_SLANT_NORMAL,
      CAIRO_FONT_WEIGHT_BOLD);
  cairo_set_font_size(cr, 50);

  cairo_set_source_rgb(cr, 0, 0, 0);
  cairo_move_to(cr, 40, 60);
  cairo_show_text(cr, "ZetCode");

  cairo_set_source_rgb(cr, 0.5, 0.5, 0.5);
  cairo_move_to(cr, 43, 63);
  cairo_show_text(cr, "ZetCode");
}

To create a shade, we draw the text twice. In different colours. The second text is moved a bit to the right and bottom.

cairo_set_source_rgb(cr, 0, 0, 0);
cairo_move_to(cr, 40, 60);
cairo_show_text(cr, "ZetCode");

The first text is drawn in black ink. It serves as a shade.

cairo_set_source_rgb(cr, 0.5, 0.5, 0.5);
cairo_move_to(cr, 43, 63);
cairo_show_text(cr, "ZetCode");

The second text is drawn in some gray ink. It is moved by 3px to the right and to the bottom.

Shaded text
Figure: Shaded text

Text filled with gradient

The following example will create a nice effect. We will fill a text with some linear gradient.

static void do_drawing(cairo_t *cr, GtkWidget *widget)
{
  cairo_pattern_t *pat;

  cairo_set_source_rgb(cr, 0.2, 0.2, 0.2);
  cairo_paint(cr);

  gint h = 90;

  cairo_select_font_face(cr, "Serif", CAIRO_FONT_SLANT_ITALIC,
      CAIRO_FONT_WEIGHT_BOLD);
  cairo_set_font_size(cr, h);

  pat = cairo_pattern_create_linear(0, 15, 0, h*0.8);
  cairo_pattern_set_extend(pat, CAIRO_EXTEND_REPEAT);
  cairo_pattern_add_color_stop_rgb(pat, 0.0, 1, 0.6, 0);
  cairo_pattern_add_color_stop_rgb(pat, 0.5, 1, 0.3, 0);

  cairo_move_to(cr, 15, 80);
  cairo_text_path(cr, "ZetCode");
  cairo_set_source(cr, pat);
  cairo_fill(cr);
}

We draw a text on the window filled with a linear gradient. The colours are some orange colours.

cairo_set_source_rgb(cr, 0.2, 0.2, 0.2);
cairo_paint(cr);

To make it more visually appealing, we paint the background in dark gray colour.

pat = cairo_pattern_create_linear(0, 15, 0, h*0.8);
cairo_pattern_set_extend(pat, CAIRO_EXTEND_REPEAT);
cairo_pattern_add_color_stop_rgb(pat, 0.0, 1, 0.6, 0);
cairo_pattern_add_color_stop_rgb(pat, 0.5, 1, 0.3, 0);

The linear gradient is created.

cairo_move_to(cr, 15, 80);
cairo_text_path(cr, "ZetCode");
cairo_set_source(cr, pat);
cairo_fill(cr);

The text is displayed on the window. We use the gradient as a source for painting.

Text filled with gradient

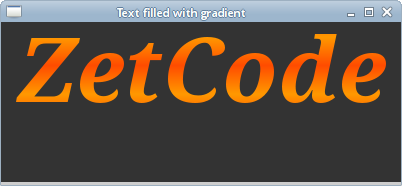

Figure: Text filled with gradient

Glyphs

The cairo_show_text() method is only suitable for simple text rendering. Cairo developers call it a toy method. More professional text rendering is done with glyphs. A glyph is a graphic symbol which provides a form for a character. A character provides a meaning. It can have multiple glyphs. A character has no intrinsic appearance. A glyph has no intrinsic meaning.

Note that many common programming requirements conserning text are addressed by the Pango library.

static void do_drawing(cairo_t *cr, GtkWidget *widget)
{
  cairo_select_font_face(cr, "Serif", CAIRO_FONT_SLANT_NORMAL,
      CAIRO_FONT_WEIGHT_NORMAL);
  cairo_set_font_size(cr, 13);

  const int n_glyphs = 20 * 35;
  cairo_glyph_t glyphs[n_glyphs];

  gint i = 0;
  gint x, y;

  for (y=0; y<20; y++) {
      for (x=0; x<35; x++) {
          glyphs[i] = (cairo_glyph_t) {i, x*15 + 20, y*18 + 20};
          i++;
      }
  }

  cairo_show_glyphs(cr, glyphs, n_glyphs);
}

This code shows 700 glyphs of a chosen font.

const int n_glyphs = 20 * 35;
cairo_glyph_t glyphs[n_glyphs];

The glyphs array will store three integer values. The first value is the index of the glyph to the chosen font type. The second and the third values are x, y positions of a glyph.

cairo_show_glyphs(cr, glyphs, n_glyphs);

The cairo_show_glyphs() method shows the glyphs on the window.

This chapter covered text in Cairo.
