Menus & toolbars in Tcl/Tk

In this part of the Tcl/Tk tutorial, we will work with menus and a toolbar.

A menubar is one of the most visible parts of the GUI application. It is a group of commands located in various menus. While in console applications we must remember many arcane commands, here we have most of the commands grouped into logical parts. There are accepted standards that further reduce the amount of time spending to learn a new application. Menus group commands that we can use in an application. Toolbars provide a quick access to the most frequently used commands.

Simple menu

The first example will show a simple menu.

#!/usr/bin/wish

# ZetCode Tcl/Tk tutorial
#
# In this code example, we create
# a simple menu.
#
# author: Jan Bodnar
# last modified: March 2011
# website: www.zetcode.com


menu .mbar
. configure -menu .mbar

menu .mbar.fl -tearoff 0
.mbar add cascade -menu .mbar.fl -label File \
    -underline 0

.mbar.fl add command -label Exit -command { exit }

wm title . "Simple menu"
wm geometry . 250x150+300+300

Our example will show a File menu with one item. By selecting the exit menu item we close the application.

menu .mbar
. configure -menu .mbar

We create a menubar. A menubar is a special case of a menu.

menu .mbar.fl -tearoff 0

File menu is created. The -tearoff option specifies that the menu cannot be removed from the menubar.

.mbar add cascade -menu .mbar.fl -label File \
    -underline 0

We add the file menu to the menubar. The -underline option underlines the first character of the label. Now the menu can be pulled down with the Alt+F shortcut.

.mbar.fl add command -label Exit -command { exit }

An Exit command is added to the File menu. This will create a menu item. When the menu item is selected, the application terminates.

Simple menu

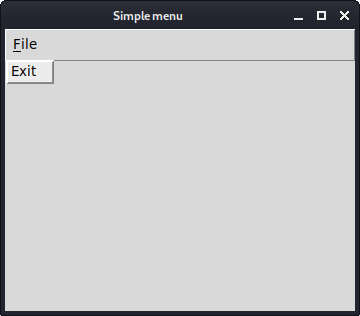

Figure: Simple menu

Submenu

A submenu is a menu plugged into another menu object. The next example demonstrates this.

#!/usr/bin/wish

# ZetCode Tcl/Tk tutorial
#
# In this code example, we create
# a submenu.
#
# author: Jan Bodnar
# last modified: March 2011
# website: www.zetcode.com


menu .mbar
. configure -menu .mbar

menu .mbar.fm -tearoff 0
.mbar add cascade -menu .mbar.fm -label File \
    -underline 0

menu .mbar.fm.sb
.mbar.fm.sb add command -label "News feed"
.mbar.fm.sb add command -label Bookmarks
.mbar.fm.sb add command -label Mail

.mbar.fm add cascade -label Import -menu \
    .mbar.fm.sb -underline 0
.mbar.fm add separator

.mbar.fm add command -label Exit -underline 0 \
    -command {exit}


wm title . submenu
wm geometry . 250x150+300+300

In the example, we have three options in a submenu of a file menu. We create a separator and keyboard shortcuts.

menu .mbar.fm.sb
.mbar.fm.sb add command -label "News feed"
.mbar.fm.sb add command -label Bookmarks
.mbar.fm.sb add command -label Mail

We have a submenu with three commands. The submenu is a regular menu. Note the hierarchy of the widget path name.

.mbar.fm add cascade -label Import -menu \
    .mbar.fm.sb -underline 0

By adding the menu to the File menu and not to the menubar, we create a submenu. The underline parameter creates a keyboard shortcut. We provide a character position, which should be underlined. In our case it is the first. Positions start from zero. When we click on the File menu, a popup window is shown. The Import menu has one character underlined. We can select it either with the mouse pointer, or with the Alt+I shortcut.

.mbar.fm add separator

A separator is a horizontal line that visually separates the menu commands. This way we can group items into some logical places.

Submenu

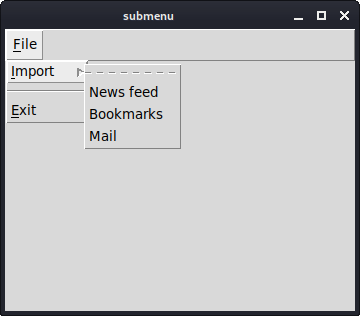

Figure: Submenu

Popup menu

In the next example, we create a popup menu. A popup menu is a contextual widget which can be shown anywhere on the client area of a window.

#!/usr/bin/wish

# ZetCode Tcl/Tk tutorial
#
# In this code example, we create
# a popup menu.
#
# author: Jan Bodnar
# last modified: March 2011
# website: www.zetcode.com


menu .m -tearoff 0
.m add command -label Beep
.m add command -label Exit -command {exit}

bind . "<Button-3>" "showMenu %X %Y"

wm title . popupmenu
wm geometry . 250x150+300+300

proc showMenu {x y} {
    tk_popup .m $x $y
}

In our example, we create a popup menu with two commands.

menu .m -tearoff 0
.m add command -label Beep
.m add command -label Exit -command {exit}

A context menu is a regular menu widget. The tearoff feature is turned off.

bind . "<Button-3>" "showMenu %X %Y"

We bind the <Button-3> event to the showMenu procedure. The event is generated when we right click on the client area of the window. We pass two parameters to the procedure. These are the x and y coordinates of the mouse click.

proc showMenu {x y} {
    tk_popup .m $x $y
}

The showMenu procedure shows the context menu. The popup menu is shown at the x and y coordinates of the mouse click. To display the popup menu, we use the tk_popup command.

Popup menu`

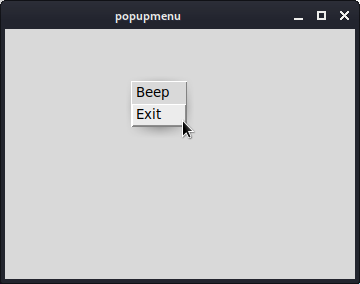

Figure: Popup menu

Toolbar

Menus group commands that we can use in an application. Toolbars provide a quick access to the most frequently used commands. There is no toolbar widget in Tk.

#!/usr/bin/wish

# ZetCode Tcl/Tk tutorial
#
# In this code example, we create
# a toolbar.
#
# author: Jan Bodnar
# last modified: March 2011
# website: www.zetcode.com

package require Img

menu .mbar
. configure -menu .mbar

menu .mbar.fl -tearoff 0
.mbar add cascade -menu .mbar.fl -label File \
    -underline 0

frame .toolbar -bd 1 -relief raised
image create photo img -file "exit.png"
button .toolbar.exitButton -image img -relief flat -command {exit}
pack .toolbar.exitButton -side left -padx 2 -pady 2
pack .toolbar -fill x

wm title . toolbar
wm geometry . 250x150+300+300

Our toolbar will be a frame on which we will put a button.

frame .toolbar -bd 1 -relief raised

A toolbar is created. It is a frame. We created a raised border, so that the boundaries of a toolbar are visible.

image create photo img -file "exit.png"
button .toolbar.exitButton -image img -relief flat -command {exit}

An exit button with an image is created.

pack .toolbar.exitButton -side left -padx 2 -pady 2

The toolbar is a frame and a frame is a container widget. We pack the button to the left side. We add some padding.

pack .toolbar -fill x

The toolbar is packed to the root window; it is horizontally stretched.

Toolbar

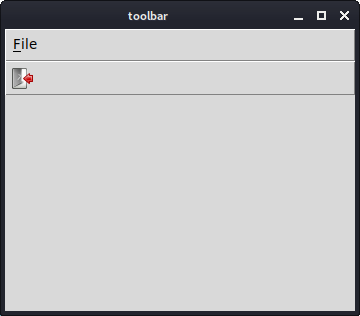

Figure: Toolbar

In this part of the Tcl/Tk tutorial, we have shown how to create a menubar with menus and menu items and a toolbar.
