Dialogs in Tcl/Tk

In this part of the Tcl/Tk tutorial, we will work with dialogs.

Dialog windows or dialogs are an indispensable part of most modern GUI applications. A dialog is defined as a conversation between two or more persons. In a computer application a dialog is a window which is used to "talk" to the application. A dialog is used to input data, modify data, change the application settings etc. Dialogs are important means of communication between a user and a computer program.

Message boxes

Message boxes are convenient dialogs that provide messages to the user of the application. The message consists of text and image data. Message boxes in Tk are created with the tk_messageBox command.

#!/usr/bin/wish

# ZetCode Tcl/Tk tutorial
#
# In this program, we show various
# message boxes.
#
# author: Jan Bodnar
# last modified: March 2011
# website: www.zetcode.com


frame .fr
pack .fr

ttk::button .fr.erButton -text Error -command onError
grid .fr.erButton
ttk::button .fr.wButton -text Warning -command onWarn
grid .fr.wButton -row 1 -column 0
ttk::button .fr.queButton -text Question -command onQuest
grid .fr.queButton -row 0 -column 1 -sticky we -columnspan 6
ttk::button .fr.infButton -text Information -command onInfo
grid .fr.infButton -row 1 -column 1


proc onError {} {
    tk_messageBox -type ok -icon error -title Error \
    -message "Could not open file"
}

proc onWarn {} {
    tk_messageBox -type ok -icon warning -title Warning \
    -message "Deprecated function call"
}

proc onQuest {} {
    tk_messageBox -type ok -icon question -title Question \
    -message "Are you sure to quit?"
}

proc onInfo {} {
    tk_messageBox -type ok -icon info -title Information \
    -message "Download completed"
}


wm title . "message boxes"
wm geometry . 300x150+300+300

We use the grid manager to set up a grid of four buttons. Each of the buttons shows a different message box.

ttk::button .fr.erButton -text Error -command onError
grid .fr.erButton

We create an error button, which calls the onError procedure. Inside the method, we show the error message dialog. The button is placed into the first cell of the grid. Widgets inside the ttk namespace are themed. The button and ttk::button are the same buttons in terms of functionality. The difference is that we can apply themes on the latter.

proc onError {} {
    tk_messageBox -type ok -icon error -title Error \
    -message "Could not open file"
}

In case we pressed the error button, we show the error dialog. We use the tk_messageBox command to create the message box. The -type option specifies which buttons are shown in the dialog. In our case it is a single OK button. The -icon specifies the type of the icon to be shown. The -title provides the title of the dialog and the -message its message.

Warning message dialog
Figure: Warning message dialog

Color chooser

The color chooser is a dialog for selecting a colour. We use the tk_chooseColor command to display the dialog.

#!/usr/bin/wish

# ZetCode Tcl/Tk tutorial
#
# In this script, we use tk_chooseColor
# dialog to change the colour of the text.
#
# author: Jan Bodnar
# last modified: March 2011
# website: www.zetcode.com


label .l -text ZetCode
place .l -x 20 -y 90

button .b -text "Choose a color..." \
        -command "onSelect .l"
place .b -x 20 -y 30

wm title . "color dialog"
wm geometry . 350x200+300+300


proc onSelect {widget} {
    set col \
        [tk_chooseColor -title "Choose a color" -parent .]
    $widget configure -foreground $col
}

We have a button and a label. Clicking on the button we show a color chooser dialog. We will change the colour of the label text by selecting a colour from the dialog.

label .l -text ZetCode
place .l -x 20 -y 90

We create a label widget and place it on the window.

button .b -text "Choose a color..." \
        -command "onSelect .l"
place .b -x 20 -y 30

We create a button widget and place it on the window. We pass the widget path of the label to the onSelect procedure, which shows the dialog and changes the colour of the label.

proc onSelect {widget} {
    set col \
        [tk_chooseColor -title "Choose a color" -parent .]
    $widget configure -foreground $col
}

Inside the onSelect procedure, we show the dialog and change the label colour. First we display the dialog and store the chosen colour value in the col variable. Later we use the configure command to change the foreground of the label. The command is executed on the widget's path name. The label's path name was passed to the procedure.

Color chooser
Figure: Color chooser

File dialog

tk_getOpenFile dialog allows a user to select a file from the filesystem.

#!/usr/bin/wish

# ZetCode Tcl/Tk tutorial
#
# In this program, we use the
# tk_getOpenFile dialog to select a file from
# a filesystem.
#
# author: Jan Bodnar
# last modified: March 2011
# website: www.zetcode.com


set types {
    {"All Source Files"     {.tcl .tk } }
    {"Image Files"          {.gif .png .jpg} }
    {"All files"            *}
}

proc onSelect { label } {
    global types
    set file [tk_getOpenFile -filetypes $types -parent .]
    $label configure -text $file
}

label .l -text "..."
place .l -x 20 -y 90

button .b -text "Select a file" \
        -command "onSelect .l"
place .b -x 20 -y 30


wm title . "openfile"
wm geometry . 350x200+300+300

In our code example, we use the tk_getOpenFile dialog to select a file and display its name in a label widget.

set types {
    {"All Source Files"     {.tcl .tk } }
    {"Image Files"          {.gif .png .jpg} }
    {"All files"            *}
}

These are file filters. These filters can be used to show only specific files in the dialog.

proc onSelect { label } {
    global types
    set file [tk_getOpenFile -filetypes $types -parent .]
    $label configure -text $file
}

We show the dialog with the tk_getOpenFile command. We apply the file filters using the -filetypes option. The selected file name is stored in the file variable. The configure command is used to change the text of the label.

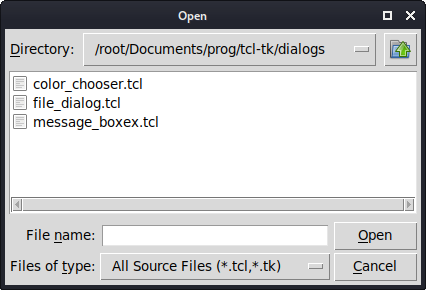

tk_getOpenFile
Figure: tk_getOpenFile

In this part of the Tcl/Tk tutorial, we worked with dialog windows.
