JavaFX Canvas

Canvas is an image that can be drawn on using a set of graphics commands provided by a GraphicsContext. It is a high-level tool for doing painting.

GraphicsContext is used to issue draw calls to a Canvas using a buffer.

Simple lines

In the first example, we draw simple lines. A line is a basic graphics primitive. Two coordinates are needed to form a line.

SimpleLinesEx.java
package com.zetcode;

import javafx.application.Application;
import javafx.scene.Scene;
import javafx.scene.canvas.Canvas;
import javafx.scene.canvas.GraphicsContext;
import javafx.scene.layout.Pane;
import javafx.stage.Stage;

/**
 * ZetCode JavaFX tutorial
 *
 * This program draws three lines which
 * form a rectangle.
 *
 * Author: Jan Bodnar
 * Website: zetcode.com
 * Last modified: June 2015
 */

public class SimpleLinesEx extends Application {

    @Override
    public void start(Stage stage) {

        initUI(stage);
    }

    private void initUI(Stage stage) {

        Pane root = new Pane();

        Canvas canvas = new Canvas(300, 300);
        GraphicsContext gc = canvas.getGraphicsContext2D();
        drawLines(gc);

        root.getChildren().add(canvas);

        Scene scene = new Scene(root, 300, 250, Color.WHITESMOKE);

        stage.setTitle("Lines");
        stage.setScene(scene);
        stage.show();
    }

    private void drawLines(GraphicsContext gc) {

        gc.beginPath();
        gc.moveTo(30.5, 30.5);
        gc.lineTo(150.5, 30.5);
        gc.lineTo(150.5, 150.5);
        gc.lineTo(30.5, 30.5);
        gc.stroke();
    }

    public static void main(String[] args) {
        launch(args);
    }
}

The example draws three lines which form a rectangle.

Canvas canvas = new Canvas(300, 300);

A Canvas is constructed with a width and height that specifies the size of the image into which the canvas drawing commands are rendered. All drawing operations are clipped to the bounds of that image.

GraphicsContext gc = canvas.getGraphicsContext2D();

The getGraphicsContext2D() returns a GraphicsContext associated with the canvas.

drawLines(gc);

The drawing is delegated to the drawLines() method.

gc.beginPath();

A line primitive is represented as a path element. The beginPath() method starts a new path.

gc.moveTo(30.5, 30.5);

The moveTo() method moves the starting point of the current path to the specified coordinate.

gc.lineTo(150.5, 30.5);
gc.lineTo(150.5, 150.5);
gc.lineTo(30.5, 30.5);

The lineTo() methods add line segments to the current path.

gc.stroke();

The stroke() method strokes the path with the current stroke paint.

Lines
Figure: Lines

Stroke and fill

A stroke is used to draw outlines of shapes. A fill is used to paint interiors of shapes.

StrokeFillEx.java
package com.zetcode;

import javafx.application.Application;
import javafx.scene.Scene;
import javafx.scene.canvas.Canvas;
import javafx.scene.canvas.GraphicsContext;
import javafx.scene.layout.Pane;
import javafx.scene.paint.Color;
import javafx.stage.Stage;

/**
 * ZetCode JavaFX tutorial
 *
 * This program draws an outline of a circle
 * and fills an interior of a circle.
 *
 * Author: Jan Bodnar
 * Website: zetcode.com
 * Last modified: June 2015
 */

public class StrokeFillEx extends Application {

    @Override
    public void start(Stage stage) {

        initUI(stage);
    }

    private void initUI(Stage stage) {

        Pane root = new Pane();

        Canvas canvas = new Canvas(300, 300);
        GraphicsContext gc = canvas.getGraphicsContext2D();
        doDrawing(gc);

        root.getChildren().add(canvas);

        Scene scene = new Scene(root, 300, 250, Color.WHITESMOKE);

        stage.setTitle("Stroke and fill");
        stage.setScene(scene);
        stage.show();
    }

    private void doDrawing(GraphicsContext gc) {

        gc.setStroke(Color.FORESTGREEN.brighter());
        gc.setLineWidth(5);
        gc.strokeOval(30, 30, 80, 80);
        gc.setFill(Color.FORESTGREEN);
        gc.fillOval(130, 30, 80, 80);
    }

    public static void main(String[] args) {
        launch(args);
    }
}

The example draws an outline of a circle and fills an interior of a circle.

gc.setStroke(Color.FORESTGREEN.brighter());

The setStroke() method sets the current stroke paint attribute. The default colour is black. The attribute is used by the stroke methods of the GraphicsContext.

gc.setLineWidth(5);

The setLineWidth() sets the current line width.

gc.strokeOval(130, 30, 80, 80);

The strokeOval() method strokes an oval using the current stroke paint.

gc.setFill(Color.FORESTGREEN);

The setFill() method sets the current fill paint attribute. The default colour is black. The attribute is used by the fill methods of the GraphicsContext.

gc.fillOval(30, 30, 80, 80);

The fillOval() fills an oval using the current fill paint.

Stroke and fill
Figure: Stroke and fill

Colours

The Color class is used to work with colours in JavaFX. There are many predefined colours. Custom colour values can be created using the RGB or HSB colour model.

ColoursEx.java
package com.zetcode;

import javafx.application.Application;
import javafx.scene.Scene;
import javafx.scene.canvas.Canvas;
import javafx.scene.canvas.GraphicsContext;
import javafx.scene.layout.Pane;
import javafx.scene.paint.Color;
import javafx.stage.Stage;

/**
 * ZetCode JavaFX tutorial
 *
 * This program draws six circles in six
 * different colours.
 *
 * Author: Jan Bodnar
 * Website: zetcode.com
 * Last modified: June 2015
 */

public class ColoursEx extends Application {

    @Override
    public void start(Stage stage) {

        initUI(stage);
    }

    private void initUI(Stage stage) {

        Pane root = new Pane();

        Canvas canvas = new Canvas(300, 300);
        GraphicsContext gc = canvas.getGraphicsContext2D();
        drawShapes(gc);

        root.getChildren().add(canvas);

        Scene scene = new Scene(root, 280, 200, Color.WHITESMOKE);

        stage.setTitle("Colours");
        stage.setScene(scene);
        stage.show();
    }

    private void drawShapes(GraphicsContext gc) {

        gc.setFill(Color.CADETBLUE);
        gc.fillOval(30, 30, 50, 50);

        gc.setFill(Color.DARKRED);
        gc.fillOval(110, 30, 50, 50);

        gc.setFill(Color.STEELBLUE);
        gc.fillOval(190, 30, 50, 50);

        gc.setFill(Color.BURLYWOOD);
        gc.fillOval(30, 110, 50, 50);

        gc.setFill(Color.LIGHTSEAGREEN);
        gc.fillOval(110, 110, 50, 50);

        gc.setFill(Color.CHOCOLATE);
        gc.fillOval(190, 110, 50, 50);
    }

    public static void main(String[] args) {
        launch(args);
    }
}

The example draws six circles using predefined colour values.

gc.setFill(Color.CADETBLUE);

A predefined Color.CADETBLUE colour is set to be the current fill.

gc.fillOval(30, 30, 50, 50);

An interior of a circle object is filled with the current fill attribute.

Colours
Figure: Colours

Gradients

In computer graphics, a gradient is a smooth blending of shades from light to dark or from one colour to another. In drawing and paint programs, gradients are used to create colourful backgrounds and special effects as well as to simulate lights and shadows. There are two types of gradients: linear gradients and radial gradients.

Linear gradient

A linear gradient is a smooth blending of colours along a line. It is defined by the LinearGradient class.

LinearGradientEx.java
package com.zetcode;

import javafx.application.Application;
import javafx.scene.Scene;
import javafx.scene.canvas.Canvas;
import javafx.scene.canvas.GraphicsContext;
import javafx.scene.layout.Pane;
import javafx.scene.paint.Color;
import javafx.scene.paint.CycleMethod;
import javafx.scene.paint.LinearGradient;
import javafx.scene.paint.Stop;
import javafx.stage.Stage;

/*
 * ZetCode JavaFX tutorial
 *
 * This program draws a linear gradient.
 *
 * Author: Jan Bodnar
 * Website: zetcode.com
 * Last modified: August 2016
 */
public class LinearGradientEx extends Application {

    @Override
    public void start(Stage stage) {

        initUI(stage);
    }

    private void initUI(Stage stage) {

        Pane root = new Pane();

        Canvas canvas = new Canvas(300, 300);
        GraphicsContext gc = canvas.getGraphicsContext2D();
        doDrawing(gc);

        root.getChildren().add(canvas);

        Scene scene = new Scene(root, 300, 250, Color.WHITESMOKE);

        stage.setTitle("Linear gradient");
        stage.setScene(scene);
        stage.show();
    }

    private void doDrawing(GraphicsContext gc) {

        Stop[] stops1 = new Stop[] { new Stop(0.2, Color.BLACK),
            new Stop(0.5, Color.RED), new Stop(0.8, Color.BLACK)};
        LinearGradient lg1 = new LinearGradient(0, 0, 1, 0, true,
                CycleMethod.NO_CYCLE, stops1);
        gc.setFill(lg1);
        gc.fillRect(50, 30, 200, 180);
    }

    public static void main(String[] args) {
        launch(args);
    }
}

In the example, we fill a rectangular shape with a linear gradient.

Stop[] stops1 = new Stop[] { new Stop(0.2, Color.BLACK),
    new Stop(0.5, Color.RED), new Stop(0.8, Color.BLACK)};

We define stop points for the gradient. They specify how to distribute the colors along the gradient.

LinearGradient lg1 = new LinearGradient(0, 0, 1, 0, true,
        CycleMethod.NO_CYCLE, stops1);

The first four parameters specify the line along which the gradient is painted. The fifth parameter is the proportional parameter, which sets whether the coordinates are proportional to the shape which this gradient fills. The sixth parameter sets the cycle method of the gradient. The last parameter takes the stop points.

LinearGradient
Figure: LinearGradient

Radial gradient

A radial gradient is a smooth blending of colours or shades of colours between a circle and a focal point. A radial gradient is defined by the RadialGradient class.

RadialGradientEx.java
package com.zetcode;

import javafx.application.Application;
import javafx.scene.Scene;
import javafx.scene.canvas.Canvas;
import javafx.scene.canvas.GraphicsContext;
import javafx.scene.layout.Pane;
import javafx.scene.paint.Color;
import javafx.scene.paint.CycleMethod;
import javafx.scene.paint.RadialGradient;
import javafx.scene.paint.Stop;
import javafx.stage.Stage;

/*
 * ZetCode JavaFX tutorial
 *
 * This program draws a radial gradient.
 *
 * Author: Jan Bodnar
 * Website: zetcode.com
 * Last modified: August 2016
 */
public class RadialGradientEx extends Application {

    @Override
    public void start(Stage stage) {

        initUI(stage);
    }

    private void initUI(Stage stage) {

        Pane root = new Pane();

        Canvas canvas = new Canvas(300, 300);
        GraphicsContext gc = canvas.getGraphicsContext2D();
        doDrawing(gc);

        root.getChildren().add(canvas);

        Scene scene = new Scene(root, 300, 250, Color.WHITESMOKE);

        stage.setTitle("Radial gradient");
        stage.setScene(scene);
        stage.show();
    }

    private void doDrawing(GraphicsContext gc) {

        Stop[] stops1 = new Stop[] { new Stop(0, Color.RED),
            new Stop(1, Color.BLACK)};
        RadialGradient lg1 = new RadialGradient(0, 0, 0.5, 0.5, 0.8, true,
                CycleMethod.NO_CYCLE, stops1);
        gc.setFill(lg1);
        gc.fillOval(30, 30, 150, 150);
    }


    public static void main(String[] args) {
        launch(args);
    }
}

The example fills a circle with a radial gradient.

Stop[] stops1 = new Stop[] { new Stop(0, Color.RED),
    new Stop(1, Color.BLACK)};

We define stop values for the gradient.

RadialGradient lg1 = new RadialGradient(0, 0, 0.5, 0.5, 0.8, true,
        CycleMethod.NO_CYCLE, stops1);

A radial gradient is created. The first two parameters are the focus angle and focus distance. The next two parameters are the x and y coordinates of the center point of the gradient's circle. The fifth parameter is the radius of the circle defining the extents of the color gradient.

RadialGradient
Figure: RadialGradient

Shapes

Rectangles, ovals, arcs are basic geometric shapes. The GraphicsContext contains methods for drawing outlines and interiors of these shapes.

ShapesEx.java
package com.zetcode;

import javafx.application.Application;
import javafx.scene.Scene;
import javafx.scene.canvas.Canvas;
import javafx.scene.canvas.GraphicsContext;
import javafx.scene.layout.Pane;
import javafx.scene.paint.Color;
import javafx.scene.shape.ArcType;
import javafx.stage.Stage;

/**
 * ZetCode JavaFX tutorial
 *
 * This program paints six different
 * shapes.
 *
 * Author: Jan Bodnar
 * Website: zetcode.com
 * Last modified: June 2015
 */

public class ShapesEx extends Application {

    @Override
    public void start(Stage stage) {

        initUI(stage);
    }

    private void initUI(Stage stage) {

        Pane root = new Pane();

        Canvas canvas = new Canvas(320, 300);
        GraphicsContext gc = canvas.getGraphicsContext2D();
        drawShapes(gc);

        root.getChildren().add(canvas);

        Scene scene = new Scene(root, 300, 200, Color.WHITESMOKE);

        stage.setTitle("Shapes");
        stage.setScene(scene);
        stage.show();
    }

    private void drawShapes(GraphicsContext gc) {

        gc.setFill(Color.GRAY);

        gc.fillOval(30, 30, 50, 50);
        gc.fillOval(110, 30, 80, 50);
        gc.fillRect(220, 30, 50, 50);
        gc.fillRoundRect(30, 120, 50, 50, 20, 20);
        gc.fillArc(110, 120, 60, 60, 45, 180, ArcType.OPEN);
        gc.fillPolygon(new double[]{220, 270, 220},
                new double[]{120, 170, 170}, 3);
    }

    public static void main(String[] args) {
        launch(args);
    }
}

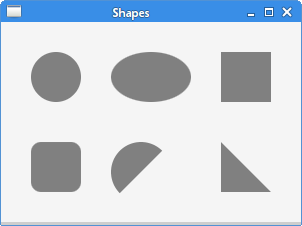

The example paints six different shapes using the graphics context's fill methods.

gc.setFill(Color.GRAY);

The shapes are painted in gray colour.

gc.fillOval(30, 30, 50, 50);
gc.fillOval(110, 30, 80, 50);

The fillOval() method paints a circle and an ellipse. The first two parameters are the x and y coordinates. The third and the fourth parameter are the width and height of the oval.

gc.fillRect(220, 30, 50, 50);

The fillRect() fills a rectangle using the current fill paint.

gc.fillRoundRect(30, 120, 50, 50, 20, 20);

The fillRoundRect() paints a rectangle, whose corners are rounded. The last two parameters of the method are the arc width and arc height of the rectangle corners.

gc.fillArc(110, 120, 60, 60, 45, 180, ArcType.OPEN);

The fillArc() method fills an arc using the current fill paint. The last three parameters are the starting angle, the angular extend, and the closure type.

gc.fillPolygon(new double[]{220, 270, 220},
        new double[]{120, 170, 170}, 3);

The fillPolygon() method fills a polygon with the given points using the currently set fill paint. In our case, it paints a right-angled triangle. The first parameter is an array containing the x coordinates of the polygon points, the second parameter is an array containing the y coordinates of the polygon points. The last parameter is the number of points that form a polygon.

Colurs
Figure: Colours

Star shape

More complex shapes can be drawn with the strokePolygon() and fillPolygon() methods. The next example draws a Star shape.

StarShapeEx.java
package com.zetcode;

import javafx.application.Application;
import javafx.scene.Scene;
import javafx.scene.canvas.Canvas;
import javafx.scene.canvas.GraphicsContext;
import javafx.scene.layout.Pane;
import javafx.scene.paint.Color;
import javafx.stage.Stage;

/**
 * ZetCode JavaFX tutorial
 *
 * This program draws a Star shape on
 * a Canvas.
 *
 * Author: Jan Bodnar
 * Website: zetcode.com
 * Last modified: June 2015
 */

public class StarShapeEx extends Application {

    @Override
    public void start(Stage stage) {

        initUI(stage);
    }

    private void initUI(Stage stage) {

        Pane root = new Pane();

        Canvas canvas = new Canvas(300, 300);
        GraphicsContext gc = canvas.getGraphicsContext2D();
        drawStarShape(gc);

        root.getChildren().add(canvas);

        Scene scene = new Scene(root, 300, 250, Color.WHITESMOKE);

        stage.setTitle("Star");
        stage.setScene(scene);
        stage.show();
    }

    private void drawStarShape(GraphicsContext gc) {

        double xpoints[] = {10, 85, 110, 135, 210, 160,
            170, 110, 50, 60};
        double ypoints[] = {85, 75, 10, 75, 85, 125,
            190, 150, 190, 125};
        gc.strokePolygon(xpoints, ypoints, xpoints.length);
    }

    public static void main(String[] args) {
        launch(args);
    }
}

The example draws an outline of a Star shape. The shape consists of ten coordinates.

double xpoints[] = {10, 85, 110, 135, 210, 160,
    170, 110, 50, 60};
double ypoints[] = {85, 75, 10, 75, 85, 125,
    190, 150, 190, 125};

These are the x and y coordinates of the shape.

gc.strokePolygon(xpoints, ypoints, xpoints.length);

The shape is drawn with the strokePolygon() method.

Star shape
Figure: Star shape

Transparent rectangles

Transparency is the quality of being able to see through a material. In computer graphics, we can achieve transparency effects using alpha compositing. Alpha compositing is the process of combining an image with a background to create the appearance of partial transparency.

TransparentRectanglesEx.java
package com.zetcode;

import javafx.application.Application;
import javafx.scene.Scene;
import javafx.scene.canvas.Canvas;
import javafx.scene.canvas.GraphicsContext;
import javafx.scene.layout.Pane;
import javafx.scene.paint.Color;
import javafx.stage.Stage;

/**
 * ZetCode JavaFX tutorial
 *
 * This program draws ten rectangles with different
 * levels of transparency.
 *
 * Author: Jan Bodnar
 * Website: zetcode.com
 * Last modified: June 2015
 */

public class TransparentRectanglesEx extends Application {

    @Override
    public void start(Stage stage) {

        initUI(stage);
    }

    private void initUI(Stage stage) {

        Pane root = new Pane();

        Canvas canvas = new Canvas(600, 300);
        GraphicsContext gc = canvas.getGraphicsContext2D();
        drawRectangles(gc);

        root.getChildren().add(canvas);

        Scene scene = new Scene(root, 600, 100, Color.WHITESMOKE);

        stage.setTitle("Transparent rectangles");
        stage.setScene(scene);
        stage.show();
    }

    private void drawRectangles(GraphicsContext gc) {

        for (int i = 1; i <= 10; i++) {

            float alpha = i * 0.1f;

            gc.setFill(Color.FORESTGREEN);
            gc.setGlobalAlpha(alpha);
            gc.fillRect(50 * i, 20, 40, 40);
        }
    }

    public static void main(String[] args) {
        launch(args);
    }
}

The example paints ten rectangles with different levels of transparency.

float alpha = i * 0.1f;

An alpha value is computed in each of the for cycles.

gc.setGlobalAlpha(alpha);

The setGlobalAlpha() method sets the global alpha of the current state.

Transparent rectangles
Figure: Transparent rectangles

In this chapter, we performed drawing operations on a Canvas node.
