Tkinter tutorial - procedural style

Tkinter tutorial in procedural style shows how to create simple GUI applications in Tkinter using procedural programming style. The object-oriented programming style is used in Tkinter tutorial - OOP style.

Tkinter

Tkinter is a Python binding to the Tk GUI toolkit. Tk is the original GUI library for the Tcl language. Tkinter is implemented as a Python wrapper around a complete Tcl interpreter embedded in Python.

Tkinter is part of the Python standard installation.

Tkinter quit button

The Button widget is a standard Tkinter widget that is used to execute an action.

quit_button.py
!/usr/bin/env python3
# -*- coding: utf-8 -*-

import tkinter

root = tkinter.Tk()
root.title('Quit button')

btn = tkinter.Button(root, text="Quit", width=8,
    command=root.quit)
btn.pack(pady=10)

root.geometry("300x250+300+300")
root.mainloop()

The example creates a quit button. When the button is clicked, the application terminates.

import tkinter

We import the tkinter module.

root = tkinter.Tk()

A root window is created. The root window is a main application window in our applications. It has a title bar and borders. These are provided by the window manager. The root window must be created before any other widgets.

root.title('Quit button')

With the title() method, we set the title of the window.

Na webe vládne PHP, Java a C#, Python, Ruby maj[
btn = tkinter.Button(root, text="Quit", width=8,
    command=root.quit)

A Button widget is created. The first parameter of the button constructor is the parent widget; it is the root window. The text parameter specifies the label of the button. The width sets the width of the button. The command parameter specifies the function that is executed when the button is clicked. The root.quit terminates the application.

btn.pack(pady=10)

The pack() is one of the three layout managers in Tkinter. It places the button on the parent and displays it. The pady places some space above and below the button.

root.geometry("300x250+300+300")

The geometry() method sets a size for the window and positions it on the screen. The first two parameters are the width and height of the window. The last two parameters are x and y screen coordinates.

root.mainloop()

Finally, we enter the mainloop. The mainloop receives events from the window system and dispatches them to the application widgets. It is terminated when we click on the close button of the titlebar or call the quit() method.

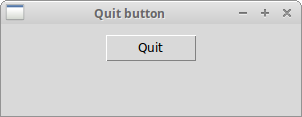

Quit button
Figure: Quit button

Tkinter center window

With the geometry() method, we center the application window on the screen.

center_window.py
#!/usr/bin/env python3
# -*- coding: utf-8 -*-

import tkinter

root = tkinter.Tk()
root.title('Centered window')

win_width = 300
win_height = 250

screen_width = root.winfo_screenwidth()
screen_height = root.winfo_screenheight()

start_x = int((screen_width/2) - (win_width/2))
start_y = int((screen_height/2) - (win_height/2))

root.geometry('{}x{}+{}+{}'.format(win_width, win_height,
    start_x, start_y))
root.mainloop()

In order to center a window on a screen we need to know the dimensions of the screen and the window.

win_width = 300
win_height = 250

This is the width and height of the window.

screen_width = root.winfo_screenwidth()
screen_height = root.winfo_screenheight()

We get the width and height of the screen with winfo_screenwidth() and winfo_screenheight() methods.

start_x = int((screen_width/2) - (win_width/2))
start_y = int((screen_height/2) - (win_height/2))

We calculate the x and y coordinates of the top-left corner of the window.

root.geometry('{}x{}+{}+{}'.format(win_width, win_height,
    start_x, start_y))

We place the window on the screen with geometry().

Tkinter Checkbutton

Checkbutton is a widget that has two states: on and off. The on state is visualized by a check mark.

A Checkbutton is associated with a variable. The variable stores the current state of the button (on or off).

checkbutton_example.py
#!/usr/bin/env python3
# -*- coding: utf-8 -*-

import tkinter

def toggleTitle():

    isTitleShown = cbvar.get()

    if isTitleShown:
        root.title('Checkbutton example')
    else:
        root.title('')

root = tkinter.Tk()
root.title('Checkbutton example')

cbvar = tkinter.BooleanVar()
cbtn = tkinter.Checkbutton(root, text="Show", width=8, variable=cbvar,
    command=toggleTitle)
cbtn.select()
cbtn.pack(pady=10)

root.geometry("300x250+300+300")
root.mainloop()

A Checkbutton is located on the window. It shows or hides the title of the window.

def toggleTitle():

    isTitleShown = cbvar.get()

    if isTitleShown:
        root.title('Checkbutton example')
    else:
        root.title('')

The toggleTitle() function toggles the title of the window. We get the state of the Checkbutton from the associated cbvar. Depending on its state, we show or hide the title with title().

cbvar = tkinter.BooleanVar()

A BooleanVar is created.

cbtn = tkinter.Checkbutton(root, text="Show", width=8, variable=cbvar,
    command=toggleTitle)

A Checkbutton is created. The variable parameter sets the associated variable. The command parameter determines the function which is called when the Checkbutton is selected or deselected.

Tkinter Checkbutton
Figure: Tkinter Checkbutton

Tkinter Label

Label is a standard widget that can show either text or images.

In order to work with images, we need to install pillow module.

$ pip3 install pillow

We install the module with pip.

label_image.py
#!/usr/bin/env python3
# -*- coding: utf-8 -*-

import tkinter
from PIL import Image, ImageTk

root = tkinter.Tk()
root.configure(background='gray')
root.title("Rotunda")

rot_i = Image.open("rotunda.jpg")
rotunda = ImageTk.PhotoImage(rot_i)

label = tkinter.Label(image=rotunda)
label.image = rotunda
label.place(x=20, y=20)

root.mainloop()

Our example displays a JPG image.

from PIL import Image, ImageTk

The Label widget can display only a limited set of image types. To display a JPG image, we must use the PIL, Python Imaging Library module. Learn more about PIL with Pillow tutorial.

root.configure(background='gray')

We change the background colour of the main window to gray colour with configure().

rot_i = Image.open("rotunda.jpg")

We create an Image from the image file which is located in the current working directory.

rotunda = ImageTk.PhotoImage(rot_i)

A photo image is created from the image.

label = tkinter.Label(image=rotunda)

The photoimage is given to the image parameter of the label widget.

label.image = rotunda

The image reference must be stored in order for the image not to be garbage collected.

label.place(x=20, y=20)

We place the image on the window using absolute coordinates with the place() method.

Tkinter Label showing image
Figure: Tkinter Label showing image

Tkinter Message box

A message box is a small dialog window that shows warnings, errors, or information.

message_box.py
#!/usr/bin/env python3
# -*- coding: utf-8 -*-

import tkinter
import tkinter.messagebox
import datetime

def showDate():

    now = datetime.datetime.now()
    msg = 'Today is: {}'.format(now)
    tkinter.messagebox.showinfo("Information", msg)

root = tkinter.Tk()
root.title('Message box')

btn = tkinter.Button(root, text="Show date", padx=5, pady=5, width=10,
    command=showDate)
btn.pack(pady=10)

root.geometry('300x300+300+250')
root.mainloop()

In this example, we show an information message box. The box is shown when we click on a button.

import tkinter.messagebox

Methods to invoke message boxes are in tkinter.message module.

def showDate():

    now = datetime.datetime.now()
    msg = 'Today is: {}'.format(now)
    tkinter.messagebox.showinfo("Information", msg)

The showDate() method displays the message box. The dialog window displays the current date and time. The tkinter.messagebox.showinfo() displays the information message box.

btn = tkinter.Button(root, text="Show date", padx=5, pady=5, width=10,
    command=showDate)

Clicking on the button the showDate() method is called.

Tkinter Message box
Figure: Tkinter Message box

Tkinter Menu

A menubar is a group of commands located in various menus. Menus group commands that we can use in an application.

simple_menu.py
#!/usr/bin/env python3
# -*- coding: utf-8 -*-

import tkinter
import tkinter.messagebox
import datetime

def showDay():

    now = datetime.datetime.now()
    msg = 'Today is: {}'.format(now.strftime('%A'))
    tkinter.messagebox.showinfo("Information", msg)

root = tkinter.Tk()
root.title('Menu')

menubar = tkinter.Menu(root)
root.config(menu=menubar)

fileMenu = tkinter.Menu(menubar)

fileMenu.add_command(label="Show day", command=showDay)
fileMenu.add_command(label="Exit", command=root.quit)

menubar.add_cascade(label="File", menu=fileMenu)

root.geometry('300x200+300+250')
root.mainloop()

The example creates a File menu with two options: Show day and Exit.

def showDay():

    now = datetime.datetime.now()
    msg = 'Today is: {}'.format(now.strftime('%A'))
    tkinter.messagebox.showinfo("Information", msg)

The showDay() displays a dialog box showing the current day.

menubar = tkinter.Menu(root)
root.config(menu=menubar)

A menubar is created. It is a regular Menu widget configured to be the menubar of the root window.

fileMenu = tkinter.Menu(menubar)

A file menu object is created. A menu is a drop-down window containing commands.

fileMenu.add_command(label="Show day", command=showDay)
fileMenu.add_command(label="Exit", command=root.quit)

We add two options with the add_command() method. The command attribute specifies the function to be called when the menu option is selected.

menubar.add_cascade(label="File", menu=fileMenu)

With the add_cascade() method, the File menu is added to the menubar.

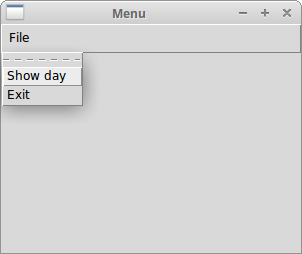

Tkinter Menu
Figure: Tkinter menu

Tkinter popup menu

Popup menu, also called a context menu, is a menu that can be shown anywhere on the client area of a window.

popup_menu.py
#!/usr/bin/env python3
# -*- coding: utf-8 -*-

import tkinter
import tkinter.messagebox
import datetime

def showDay():

    now = datetime.datetime.now()
    msg = 'Today is: {}'.format(now.strftime('%A'))
    tkinter.messagebox.showinfo("Information", msg)

def showMenu(e):

    pmenu.post(e.x_root, e.y_root)

root = tkinter.Tk()
root.title('popup menu')

pmenu = tkinter.Menu(root, tearoff=0)

pmenu.add_command(label="Show day", command=showDay)
pmenu.add_command(label="Exit", command=root.quit)

root.bind("<Button-3>", showMenu)

root.geometry('300x250+300+250')
root.mainloop()

In the example we create a popup menu with two commands.

pmenu = tkinter.Menu(root, tearoff=0)

A context menu is a regular Menu widget. The tearoff feature is turned off. Now it is not possible to separate the menu into a new toplevel window.

root.bind("<Button-3>", showMenu)

We bind the <Button-3> event type to the showMenu() callb. The event is generated when we right click on the client area of the window.

def showMenu(e):

    pmenu.post(e.x_root, e.y_root)

The showMenu() method shows the context menu. The popup menu is shown at the x and y coordinates of the mouse click.

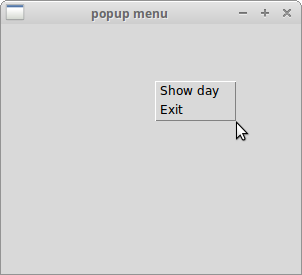

Tkinter popup menu
Figure: Tkinter popup menu

Tkinter pack layout manager

The pack geometry manager packs widgets in rows or columns. We can use options such as fill, expand, padx, pady, and side to control the layout.

pack_layout.py
#!/usr/bin/env python3
# -*- coding: utf-8 -*-

import tkinter

root = tkinter.Tk()
root.title('Pack layout')

lbl1 = tkinter.Label(root, width=20, height=5, bg='SteelBlue2')
lbl1.pack(side=tkinter.LEFT, padx=10, pady=10)

lbl2 = tkinter.Label(root, width=20, height=5, bg='SteelBlue3')
lbl2.pack(side=tkinter.LEFT)

lbl3 = tkinter.Label(root, width=20, height=5, bg='SteelBlue4')
lbl3.pack(side=tkinter.LEFT, padx=10)

root.geometry('+300+250')
root.mainloop()

In this example, we lay out three labels in a row.

lbl1.pack(side=tkinter.LEFT, padx=10, pady=10)

With the side option we pack the widgets into one row. The padx adds some horizontal space. The pady adds some vertical space.

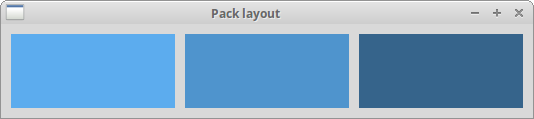

Placing labels in a row with pack manager
Figure: Placing labels in a row with pack manager

In the second example, we place widgets into a column.

pack_layout2.py
#!/usr/bin/env python3
# -*- coding: utf-8 -*-

import tkinter

root = tkinter.Tk()
root.title('Pack layout')

lbl1 = tkinter.Label(root, width=20, height=5, bg='SlateGray2')
lbl1.pack(side=tkinter.TOP, pady=15, padx=10)

lbl2 = tkinter.Label(root, width=20, height=5, bg='SlateGray3')
lbl2.pack(side=tkinter.TOP, padx=10)

lbl3 = tkinter.Label(root, width=20, height=5, bg='SlateGray4')
lbl3.pack(side=tkinter.TOP, pady=15, padx=10)

root.geometry('+300+250')
root.mainloop()

The example puts three labels into a column.

lbl1.pack(side=tkinter.TOP, pady=15, padx=10)

To put labels into a column, we set the side option to tkinter.TOP.

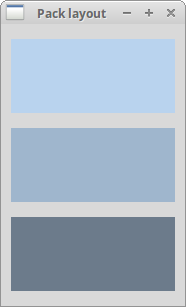

Placing labels in a column with pack manager
Figure: Placing labels in a column with pack manager

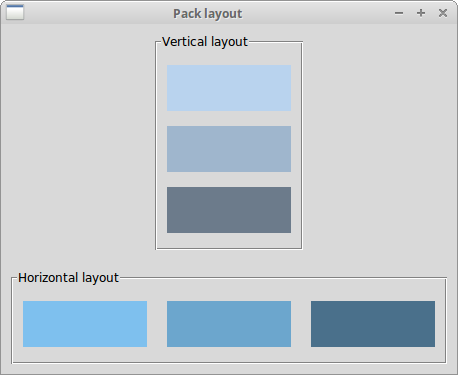

In the third example, we create a row of labels and a column of labels with pack manager.

pack_layout.py
#!/usr/bin/env python3
# -*- coding: utf-8 -*-

import tkinter

root = tkinter.Tk()
root.title('Pack layout')

frame1 = tkinter.LabelFrame(root, text='Vertical layout',
    relief=tkinter.GROOVE)

lbl1 = tkinter.Label(frame1, width=15, height=3, bg='SlateGray2')
lbl1.pack(side=tkinter.TOP, pady=15, padx=10)

lbl2 = tkinter.Label(frame1, width=15, height=3, bg='SlateGray3')
lbl2.pack(side=tkinter.TOP, padx=10)

lbl3 = tkinter.Label(frame1, width=15, height=3, bg='SlateGray4')
lbl3.pack(side=tkinter.TOP, pady=15, padx=10)

frame1.pack(pady=10)

frame2 = tkinter.LabelFrame(root, text='Horizontal layout',
    relief=tkinter.GROOVE)

lbl4 = tkinter.Label(frame2, width=15, height=3, bg='SkyBlue2')
lbl4.pack(side=tkinter.LEFT, pady=15, padx=10)

lbl5 = tkinter.Label(frame2, width=15, height=3, bg='SkyBlue3')
lbl5.pack(side=tkinter.LEFT, padx=10)

lbl6 = tkinter.Label(frame2, width=15, height=3, bg='SkyBlue4')
lbl6.pack(side=tkinter.LEFT, pady=15, padx=10)

frame2.pack(padx=10, pady=10)

root.geometry('+300+250')
root.mainloop()

We create two LabelFrame widgets. These will contain the labels. The frames themselves are packed into a column.

frame1 = tkinter.LabelFrame(root, text='Vertical layout',
    relief=tkinter.GROOVE)

lbl1 = tkinter.Label(frame1, width=15, height=3, bg='SlateGray2')
lbl1.pack(side=tkinter.TOP, pady=15, padx=10)

lbl2 = tkinter.Label(frame1, width=15, height=3, bg='SlateGray3')
lbl2.pack(side=tkinter.TOP, padx=10)

lbl3 = tkinter.Label(frame1, width=15, height=3, bg='SlateGray4')
lbl3.pack(side=tkinter.TOP, pady=15, padx=10)

frame1.pack(pady=10)

The first LabelFrame contains a column of three labels.

frame2 = tkinter.LabelFrame(root, text='Horizontal layout',
    relief=tkinter.GROOVE)

lbl4 = tkinter.Label(frame2, width=15, height=3, bg='SkyBlue2')
lbl4.pack(side=tkinter.LEFT, pady=15, padx=10)

lbl5 = tkinter.Label(frame2, width=15, height=3, bg='SkyBlue3')
lbl5.pack(side=tkinter.LEFT, padx=10)

lbl6 = tkinter.Label(frame2, width=15, height=3, bg='SkyBlue4')
lbl6.pack(side=tkinter.LEFT, pady=15, padx=10)

frame2.pack(padx=10, pady=10)

The second LabelFrame contains a row of three labels.

A column and row of labels
Figure: A column and row of labels

Tkinter grid layout manager

The grid layout manager organizes its children in a two-dimensional grid. The grid consists of columns and rows. The intersections of columns and rows are called cells.

grid_layout.py
#!/usr/bin/env python3
# -*- coding: utf-8 -*-

import tkinter

root = tkinter.Tk()
root.title('Grid')

root.columnconfigure(0, pad=5)
root.columnconfigure(1, pad=5)
root.columnconfigure(2, pad=5)
root.rowconfigure(0, pad=5)

btn1 = tkinter.Button(root, text='Button 1')
btn1.grid(column=0, row=0)

btn2 = tkinter.Button(root, text='Button 2')
btn2.grid(column=1, row=0)

btn3 = tkinter.Button(root, text='Button 3')
btn3.grid(column=2, row=0)

btn4 = tkinter.Button(root, text='Button 4')
btn4.grid(column=0, row=1)

btn5 = tkinter.Button(root, text='Button 5')
btn5.grid(column=1, row=1)

btn6 = tkinter.Button(root, text='Button 6')
btn6.grid(column=2, row=1)

root.geometry('300x300+300+250')
root.mainloop()

In the example, we place six buttons in a grid.

root.columnconfigure(0, pad=5)
root.columnconfigure(1, pad=5)
root.columnconfigure(2, pad=5)
root.rowconfigure(0, pad=5)

With columnconfigure() and rowconfigure() methods we add some space between the rows and columns.

btn1.grid(column=0, row=0)

The grid() method places the widget into the grid. The column and row attributes specify the indexes of the cell. This button is placed into the top-left cell of the grid.

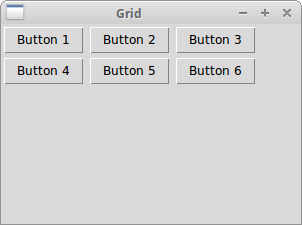

Tkinter grid manager
Figure: Tkinter grid manager

Tkinter Scale

The Scale widget allows the user to select a numerical value by moving a knob along a scale. We can control the minimum and maximum values and the resolution.

scale_example.py
#!/usr/bin/env python3
# -*- coding: utf-8 -*-

import tkinter

def onScale(val):

    v = int(val)
    lvar.set(v)

root = tkinter.Tk()
root.title('Scale example')

root.columnconfigure(0, pad=5)
root.columnconfigure(1, pad=15)
root.rowconfigure(0, pad=5)

scale = tkinter.Scale(root, from_=0, to=100, orient=tkinter.HORIZONTAL,
    command=onScale)
scale.grid(column=0, row=0)

lvar = tkinter.IntVar()
label = tkinter.Label(root, text=0, textvariable=lvar)
label.grid(column=1, row=0)

root.geometry("300x220+300+300")
root.mainloop()

In the code example we have a Scale and a Label. The value selected with the Scale is shown in the adjacent Label. The layout is created with the grid manager.

def onScale(val):

    v = int(val)
    lvar.set(v)

The onScale() method is called when we move the knob of the Scale. We get the current value of the scale and set it to the label's associated variable.

scale = tkinter.Scale(root, from_=0, to=100, orient=tkinter.HORIZONTAL,
    command=onScale)

The Scale widget is created. We specify the initial and ending values, the orientation and the callback function.

lvar = tkinter.IntVar()
label = tkinter.Label(root, text=0, textvariable=lvar)

This is the label that shows the scale's selected value.

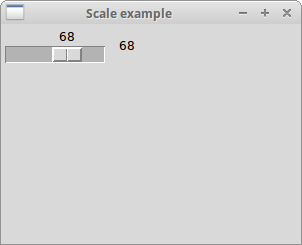

Tkinter Scale
Figure: Tkinter Scale

Tkinter key press event

A key press event is generated when the user presses a keyboard key. We use the bind() method to map an event type to the event handler. The event type for a key event is <Key>.

key_event.py
#!/usr/bin/env python3
# -*- coding: utf-8 -*-

import tkinter

def onKeyPress(e):

    msg = 'Key {}, (code {}) was pressed'.format(e.keysym, e.keycode)
    lvar.set(msg)

root = tkinter.Tk()
root.title('Key event')

lvar = tkinter.StringVar()
lbl = tkinter.Label(root, text="coordinates", textvariable=lvar)
lbl.place(x=20, y=20)

root.bind('<Key>', onKeyPress)

root.geometry("300x250+300+300")
root.mainloop()

In the example, we show the key event properties of a pressed key in a label widget.

def onKeyPress(e):

    msg = 'Key {}, (code {}) was pressed'.format(e.keysym, e.keycode)
    lvar.set(msg)

The onKeyPress is an event handler for the key press event. We show the key symbol and key code of the pressed key in the label widget.

root.bind('<Key>', onKeyPress)

We bind the <Key> event type to the onKeyPress() event handler.

Tkinter mouse move event

The event type for a mouse move event is <Motion>.

mouse_move_event.py
#!/usr/bin/env python3
# -*- coding: utf-8 -*-

import tkinter

def onMotion(e):

    msg = 'x: {} y: {}'.format(e.x, e.y)
    lvar.set(msg)

root = tkinter.Tk()
root.title('Mouse move event')

lvar = tkinter.StringVar()
lbl = tkinter.Label(root, text="coordinates", textvariable=lvar)
lbl.place(x=20, y=20)

root.bind('<Motion>', onMotion)

root.geometry("300x250+300+300")
root.mainloop()

The example shows the coordinates of the current mouse pointer in the label widget.

def onMotion(e):

    msg = 'x: {} y: {}'.format(e.x, e.y)
    lvar.set(msg)

In the onMotion() callback, we get the x and y coordinates of the mouse pointer, form a text message and set it to the label's associated variable.

root.bind('<Motion>', onMotion)

We bind the <Motion> event type to the onMotion() callback.

Tkinter jumping button

The following example is a small teaser application that utilizes the <Enter> event type. The enter event is generated when the user enters a widget with a mouse pointer.

jumping_button.py
#!/usr/bin/env python3
# -*- coding: utf-8 -*-

import tkinter
import random

def onEnterButton(e):

    w = root.winfo_width()
    h = root.winfo_height()

    b_w = btn.winfo_width()
    b_h = btn.winfo_height()

    r_x = random.randrange(0, w - b_w)
    r_y = random.randrange(0, h - b_h)

    btn.place(x=r_x, y=r_y)


root = tkinter.Tk()
root.title('Jumping button')
root.resizable(False, False)

btn = tkinter.Button(root, text='Exit', width=10, command=root.quit)
btn.place(x=180, y=20)

btn.bind('<Enter>', onEnterButton)

root.geometry("600x600+30+30")
root.mainloop()

The user tries to click the button, which should terminate the application. The button evades the click by randomly jumping from the mouse pointer.

def onEnterButton(e):

    w = root.winfo_width()
    h = root.winfo_height()

    b_w = btn.winfo_width()
    b_h = btn.winfo_height()

    r_x = random.randrange(0, w - b_w)
    r_y = random.randrange(0, h - b_h)

    btn.place(x=r_x, y=r_y)

The onEnterButton() function is called when the user enters the button area. We determine the dimensions of the root window and the button. Then we use these values to randomly relocate the button on the window area. The button is displayed with the place() method using absolute coordinates.

root.resizable(False, False)

We make it harder for the user by not allowing the window to resize.

btn = tkinter.Button(root, text='Exit', width=10, command=root.quit)

The button's command attribute is set to the root's quit() method. If the user manages to click the button, the window is terminated.

btn.bind('<Enter>', onEnterButton)

We bind the <Enter> event type to the onEnterButton() callback.

Tkinter Canvas colours

Drawing in Tkinter is done on the Canvas widget. Canvas is a high-level facility for doing graphics in Tkinter.

canvas_colours.py
#!/usr/bin/env python3
# -*- coding: utf-8 -*-

import tkinter

root = tkinter.Tk()
root.title('Canvas colours')

canvas = tkinter.Canvas(root)
canvas.create_rectangle(30, 10, 120, 80,
    outline="#fb0", fill="#fb0")
canvas.create_rectangle(150, 10, 240, 80,
    outline="#f50", fill="#f50")
canvas.create_rectangle(270, 10, 370, 80,
    outline="#05f", fill="#05f")
canvas.pack(fill=tkinter.BOTH, expand=1)

root.geometry("400x100+300+300")
root.mainloop()

The example displays three rectangles filled in three different colours.

canvas = tkinter.Canvas(root)

The Canvas widget is created.

canvas.create_rectangle(30, 10, 120, 80,
    outline="#fb0", fill="#fb0")

A rectangle is created with the create_rectangle() method. The first four parameters are the x and y coordinates of the two bounding points: the top-left and bottom-right points. With the outline parameter we control the colour of the outline of the rectangle. Likewise, the fill parameter provides a colour for the inside of the rectangle.

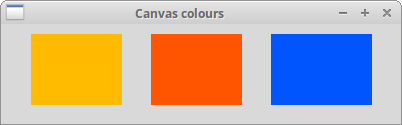

Tkinter Canvas colours
Figure: Tkinter Canvas colours

In this tutorial, we have created GUI applications in Python with Tkinter using procedural style programming. A unique e-book Tkinter programming is available on ZetCode; in PDF format with 200 pages and 89 code examples.

You might also be interested in the following related tutorials: Python CSV tutorial, Tkinter tutorial - OOP style, Python pillow tutorial, Matplotlib tutorial, and Python tutorial.
