Nibbles

In this part of the Mono Winforms programming tutorial, we will create a Nibbles game clone.

Nibbles game

Nibbles is an older classic video game. It was first created in late 70s. Later it was brought to PCs. In this game the player controls a worm. The objective is to eat as many apples as possible. Each time the worm eats an apple, its body grows. It must avoid the walls and its own body.

Development

The size of each of the joints of a worm is 10px. The worm is controlled with the cursor keys. Initially the worm has three joints. The game is started by pressing one of the cursor keys. If the game is finished, we display Game Over message in the middle of the Board.

board.vb
Imports System
Imports System.Collections
Imports System.ComponentModel
Imports System.Drawing
Imports System.Data
Imports System.Windows.Forms

NameSpace BoardSpace

public class Board
    Inherits UserControl


    Const WIDTH As Integer = 300
    Const HEIGHT As Integer = 300
    Const DOT_SIZE As Integer = 10
    Const ALL_DOTS As Integer = 900
    Const RAND_POS As Integer = 27
    Const DELAY As Integer = 140

    Dim x(ALL_DOTS) As Integer
    Dim y(ALL_DOTS) As Integer

    Dim dots As Integer
    Dim apple_x As Integer
    Dim apple_y As Integer

    Dim left As Boolean = False
    Dim right As Boolean = True

    Dim up As Boolean = False
    Dim down As Boolean = False
    Dim inGame As Boolean = True

    Private Dim timer As Timer

    Private Dim dot As Bitmap
    Private Dim apple As Bitmap
    Private Dim head As Bitmap

    Private Dim components As IContainer

    Public Dim BORDER_WIDTH As Integer
    Public Dim TITLEBAR_HEIGHT As Integer


    Public Sub New

        components = New Container
        Me.BackColor = Color.Black
        Me.DoubleBuffered = True
        Me.ClientSize = New Size(WIDTH, HEIGHT)

        Try
            dot = New Bitmap("dot.png")
            apple = New Bitmap("apple.png")
            head = New Bitmap("head.png")

        Catch e As Exception
            Console.WriteLine(e.Message)
            Environment.Exit(1)
        End Try

        Me.InitGame

    End Sub


    Private Sub InitGame

        dots = 3

        For z As Integer = 0 To dots-1
            x(z) = 50 - z*10
            y(z) = 50
        Next

        Me.LocateApple

        AddHandler Me.KeyUp, AddressOf Me.OnKeyUp

        timer = New Timer(Me.components)
        timer.Enabled = True
        timer.Interval = DELAY

        AddHandler timer.Tick, AddressOf Me.OnTick
        AddHandler Me.Paint, AddressOf Me.OnPaint

    End Sub


    Private Sub OnPaint(ByVal sender As Object, _
               ByVal e As PaintEventArgs)

        Dim g As Graphics = e.Graphics

        If inGame
            Me.DrawObjects(g)
        Else
            Me.GameOver(g)
        End If

    End Sub

    Private Sub DrawObjects(ByVal g As Graphics)
        g.DrawImage(apple, apple_x, apple_y)

        For z As Integer = 0 To dots-1
            If z = 0
                g.DrawImage(head, x(z), y(z))
            Else
                g.DrawImage(dot, x(z), y(z))
            End If
        Next
    End Sub

    Private Sub GameOver(ByVal g As Graphics)

        Dim msg As String = "Game Over"
        Dim rectF As RectangleF = RectangleF.op_Implicit(Me.ClientRectangle)

        Dim format As New StringFormat
        format.Alignment = StringAlignment.Center
        format.LineAlignment = StringAlignment.Center

        g.DrawString(msg, Font, Brushes.White, rectF , format)
        timer.Stop

    End Sub


    Private Sub CheckApple

        If x(0) = apple_x And y(0) = apple_y

            dots += 1
            Me.LocateApple

        End If

    End Sub

    Private Sub Move

        For z As Integer = dots To 1 Step -1
            x(z) = x(z - 1)
            y(z) = y(z - 1)
        Next

        If left
            x(0) -= DOT_SIZE
        End If

        If right
            x(0) += DOT_SIZE
        End If

        If up
            y(0) -= DOT_SIZE
        End If

        If down
            y(0) += DOT_SIZE
        End If

    End Sub


    Private Sub CheckCollision

        For z As Integer = dots To 1 Step -1
            If z > 4 And x(0) = x(z) And y(0) = y(z)
                inGame = False
            End If
        Next

        If y(0) >= HEIGHT - DOT_SIZE - TITLEBAR_HEIGHT
            inGame = False
        End If

        If y(0) < 0
            inGame = False
        End If

        If x(0) >=  WIDTH - DOT_SIZE - BORDER_WIDTH:
            inGame = False
        End If

        If x(0) < 0
            inGame = False
        End If

    End Sub


    Private Sub LocateApple

        Dim rand As New Random

        Dim r As Integer = rand.Next(RAND_POS)

        apple_x = r * DOT_SIZE
        r = rand.Next(RAND_POS)
        apple_y = r * DOT_SIZE


    End Sub



    Private Sub OnTick(ByVal sender As Object, ByVal e As EventArgs)

        If inGame
            Me.CheckApple
            Me.CheckCollision
            Me.Move
        End If

        Me.Refresh

    End Sub


    Private Sub OnKeyUp(ByVal sender As Object, ByVal e As KeyEventArgs)

        Dim key As Integer = e.KeyCode

        If key = Keys.Left And Not right
            left = True
            up = False
            down = False
        End If

        If key = Keys.Right And Not left
            right = True
            up = False
            down = False
        End If

        If key = Keys.Up And Not down
            up = True
            right = False
            left = False
        End if

        If key = Keys.Down And Not up
            down = True
            right = False
            left = False
        End If

    End Sub

End Class

End Namespace

First we will define the constants used in our game.

The WIDTH and HEIGHT constants determine the size of the Board. The DOT_SIZE is the size of the apple and the dot of the worm. The ALL_DOTS constant defines the maximum number of possible dots on the Board. (900 = 300*300/10*10) The RAND_POS constant is used to calculate a random position of an apple. The DELAY constant determines the speed of the game.

Dim x(ALL_DOTS) As Integer
Dim y(ALL_DOTS) As Integer

These two arrays store x, y coordinates of all joints of a worm.

In the Move method we have the key algorithm of the game. To understand it, look at how the worm is moving. You control the head of the worm. You can change its direction with the cursor keys. The rest of the joints move one position up the chain. The second joint moves where the first was, the third joint where the second was etc.

For z As Integer = dots To 1 Step -1
    x(z) = x(z - 1)
    y(z) = y(z - 1)
Next

This code moves the joints up the chain.

If left
    x(0) -= DOT_SIZE
End If

Move the head to the left.

In the CheckCollision method, we determine if the worm has hit itself or one of the walls.

For z As Integer = dots To 1 Step -1
    If z > 4 And x(0) = x(z) And y(0) = y(z)
        inGame = False
    End If
Next

We finish the game if the worm hits one of its joints with the head.

If y(0) >= HEIGHT - DOT_SIZE - TITLEBAR_HEIGHT
    inGame = False
End If

We finish the game if the worm hits the bottom of the Board.

The following image helps understand the collision of the worm object with the bottom of the board.

Collision
Figure: Collision

The locateApple method locates an apple randomly on the form.

Dim rand As New Random

Dim r As Integer = rand.Next(RAND_POS)

We get a random number from 0 to RAND_POS - 1.

apple_x = r * DOT_SIZE
...
apple_y = r * DOT_SIZE

These line set the x, y coordinates of the apple object.

In the OnKeyUp method, we deternime which keys the player hit.

If key = Keys.Left And Not right
    left = True
    up = False
    down = False
End If

If we hit the left cursor key, we set left variable to True. This variable is used in the Move method to change coordinates of the worm object. Notice also that when the worm is heading to the right, we cannot turn immediately to the left.

nibbles.vb
' ZetCode Mono Visual Basic Winforms tutorial
'
' In this program, we create
' a Nibbles game clone
'
' author jan bodnar
' last modified May 2009
' website www.zetcode.com

Imports System
Imports System.Drawing
Imports System.Windows.Forms

Public Class WinVBApp
    Inherits Form

    Public Sub New

        Me.Text = "Nibbles"

        Me.FormBorderStyle = FormBorderStyle.FixedSingle

        Dim borderWidth As Integer = (Me.Width - Me.ClientSize.Width) / 2
        Dim titleBarHeight As Integer = Me.Height - Me.ClientSize.Height - borderWidth

        Dim board As New BoardSpace.Board
        board.BORDER_WIDTH = borderWidth
        board.TITLEBAR_HEIGHT = titleBarHeight

        Me.Controls.Add(board)
        Me.CenterToScreen

    End Sub

    Public Shared Sub Main
        Application.Run(New WinVBApp)
    End Sub

End Class

This is the main class.

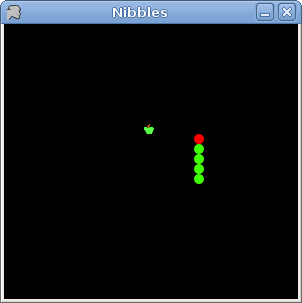

Nibbles
Figure: Nibbles

This was the Nibbles game programmed using the Mono Winforms library and the Visual Basic language.
