Dialogs

In this part of the Visual Basic GTK# programming tutorial, we will introduce dialogs.

Dialog windows or dialogs are an indispensable part of most modern GUI applications. A dialog is defined as a conversation between two or more persons. In a computer application a dialog is a window which is used to "talk" to the application. A dialog is used to input data, modify data, change the application settings etc. Dialogs are important means of communication between a user and a computer program.

Message boxes

Message dialogs are convenient dialogs that provide messages to the user of the application. The message consists of textual and image data.

' ZetCode Mono Visual Basic GTK# tutorial
'
' This program shows message dialogs.
'
' author jan bodnar
' last modified May 2009
' website www.zetcode.com


Imports Gtk

Public Class GtkVBApp
    Inherits Window

    Public Sub New

        MyBase.New("Message dialogs")

        Me.InitUI

        Me.SetDefaultSize(250, 100)
        Me.SetPosition(WindowPosition.Center)
        AddHandler Me.DeleteEvent, AddressOf Me.OnDelete

        Me.ShowAll

    End Sub

    Private Sub InitUI

        Dim table As New Table(2, 2, True)

        Dim info As New Button("Information")
        Dim warn As New Button("Warning")
        Dim ques As New Button("Question")
        Dim erro As New Button("Error")

        AddHandler info.Clicked, AddressOf Me.OnInfo
        AddHandler warn.Clicked, AddressOf Me.OnWarning
        AddHandler ques.Clicked, AddressOf Me.OnQuestion
        AddHandler erro.Clicked, AddressOf Me.OnError

        table.Attach(info, 0, 1, 0, 1)
        table.Attach(warn, 1, 2, 0, 1)
        table.Attach(ques, 0, 1, 1, 2)
        table.Attach(erro, 1, 2, 1, 2)

        Me.Add(table)

    End Sub

    Private Sub OnInfo(ByVal sender As Object, ByVal args As EventArgs)
        Dim md As MessageDialog = New MessageDialog(Me, _
            DialogFlags.DestroyWithParent, MessageType.Info, _
            ButtonsType.Close, "Download completed")
        md.Run
        md.Destroy
    End Sub

    Private Sub OnWarning(ByVal sender As Object, ByVal args As EventArgs)
        Dim md As MessageDialog = New MessageDialog(Me, _
            DialogFlags.DestroyWithParent, MessageType.Warning, _
            ButtonsType.Close, "Unallowed operation")
        md.Run
        md.Destroy
    End Sub

    Private Sub OnQuestion(ByVal sender As Object, ByVal args As EventArgs)
        Dim md As MessageDialog = New MessageDialog(Me, _
            DialogFlags.DestroyWithParent, MessageType.Question, _
            ButtonsType.Close, "Are you sure to quit?")
        md.Run
        md.Destroy
    End Sub

    Private Sub OnError(ByVal sender As Object, ByVal args As EventArgs)
        Dim md As MessageDialog = New MessageDialog(Me, _
            DialogFlags.DestroyWithParent, MessageType.Error, _
            ButtonsType.Close, "Error loading file")
        md.Run
        md.Destroy
    End Sub

    Private Sub OnDelete(ByVal sender As Object, _
            ByVal args As DeleteEventArgs)
        Application.Quit
    End Sub

    Public Shared Sub Main

        Application.Init
        Dim app As New GtkVBApp
        Application.Run

    End Sub

End Class

In our example, we will show four kinds of message dialogs. Information, Warning, Question and Error message dialogs.

Dim info As New Button("Information")
Dim warn As New Button("Warning")
Dim ques As New Button("Question")
Dim erro As New Button("Error")

We have four buttons. Each of these buttons will show a different kind of message dialog.

Private Sub OnInfo(ByVal sender As Object, ByVal args As EventArgs)
    Dim md As MessageDialog = New MessageDialog(Me, _
        DialogFlags.DestroyWithParent, MessageType.Info, _
        ButtonsType.Close, "Download completed")
    md.Run
    md.Destroy
End Sub

If we click on the info button, the Information dialog is displayed. The MessageType.Info specifies the type of the dialog. The ButtonsType.Close specifies the button to be displayed in the dialog. The last parameter is the message dislayed. The dialog is displayed with the Run method. The programmer must also call either the Destroy or the Hide method.

Information message dialog Warning message dialog Question message dialog Error message dialog

AboutDialog

The AboutDialog displays information about the application. AboutDialog can display a logo, the name of the application, version, copyright, website or licence information. It is also possible to give credits to the authors, documenters, translators and artists.

' ZetCode Mono Visual Basic GTK# tutorial
'
' This program shows the about
' dialog
'
' author jan bodnar
' last modified May 2009
' website www.zetcode.com


Imports Gtk

Public Class GtkVBApp
    Inherits Window

    Public Sub New

        MyBase.New("About dialog")

        Me.InitUI

        Me.SetDefaultSize(350, 300)
        Me.SetPosition(WindowPosition.Center)
        AddHandler Me.DeleteEvent, AddressOf Me.OnDelete

        Me.ShowAll

    End Sub

    Private Sub InitUI

        Dim button As New Button("About")

        AddHandler button.Clicked, AddressOf Me.ShowDialog

        Dim fixed As New Fixed
        fixed.Put(button, 20, 20)
        Me.Add(fixed)

    End Sub

    Private Sub ShowDialog(ByVal sender As Object, _
            ByVal args As EventArgs)

        Dim about As New AboutDialog
        about.ProgramName = "Battery"
        about.Version = "0.1"
        about.Copyright = "(c) Jan Bodnar"
        about.Comments = "Battery is a simple tool for battery checking"
        about.Website = "http://www.zetcode.com"
        about.Logo = New Gdk.Pixbuf("battery.png")
        about.Run
        about.Destroy

    End Sub


    Sub OnDelete(ByVal sender As Object, _
            ByVal args As DeleteEventArgs)
        Application.Quit
    End Sub

    Public Shared Sub Main

        Application.Init
        Dim app As New GtkVBApp
        Application.Run

    End Sub

End Class

The code example uses a AboutDialog with some of its features.

Dim about As New AboutDialog

We create an AboutDialog.

Dim about As New AboutDialog
about.ProgramName = "Battery"
about.Version = "0.1"
about.Copyright = "(c) Jan Bodnar"

By setting the properties of the dialog, we specify the name, version and the copyright.

about.Logo = New Gdk.Pixbuf("battery.png")

This line creates a logo.

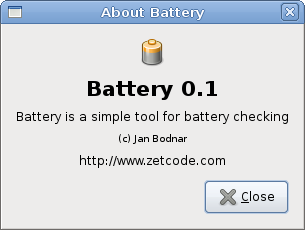

AboutDialog
Figure: AboutDialog

FontSelectionDialog

The FontSelectionDialog is a dialog for selecting fonts. It is typically used in applications that do some text editing or formatting.

' ZetCode Mono Visual Basic GTK# tutorial
'
' This program shows the FontSelectionDialog
'
' author jan bodnar
' last modified May 2009
' website www.zetcode.com

Imports Gtk


Public Class GtkVBApp
    Inherits Window

    Dim label As Label

    Public Sub New

        MyBase.New("Font dialog")

        Me.InitUI

        Me.SetDefaultSize(350, 300)
        Me.SetPosition(WindowPosition.Center)
        AddHandler Me.DeleteEvent, AddressOf Me.OnDelete

        Me.ShowAll

    End Sub

    Private Sub InitUI

        label = New Label("The only victory over love is flight.")
        Dim button As New Button("Select font")

        AddHandler button.Clicked, AddressOf Me.ShowDialog

        Dim fixed As New Fixed
        fixed.Put(button, 100, 30)
        fixed.Put(label, 30, 90)
        Me.Add(fixed)

    End Sub

    Private Sub ShowDialog(ByVal sender As Object, _
            ByVal args As EventArgs)

        Dim fdia As New FontSelectionDialog("Select font name")

        AddHandler fdia.Response, AddressOf Me.SelectFont

        fdia.Run
        fdia.Destroy

    End Sub

    Private Sub SelectFont(ByVal sender As Object, _
            ByVal args As ResponseArgs)

        If args.ResponseId = ResponseType.Ok
            Dim fontdesc As Pango.FontDescription = _
                Pango.FontDescription.FromString(sender.FontName)
            label.ModifyFont(fontdesc)
        End If

    End Sub

    Sub OnDelete(ByVal sender As Object, _
            ByVal args As DeleteEventArgs)
        Application.Quit
    End Sub

    Public Shared Sub Main

        Application.Init
        Dim app As New GtkVBApp
        Application.Run

    End Sub

End Class

In the code example, we have a button and a label. We show the FontSelectionDialog by clicking on the button.

Dim fdia As New FontSelectionDialog("Select font name")

We create the FontSelectionDialog.

If args.ResponseId = ResponseType.Ok
    Dim fontdesc As Pango.FontDescription = _
        Pango.FontDescription.FromString(sender.FontName)
    label.ModifyFont(fontdesc)
End If

If we click on the OK button, the font of the label widget changes to the one that we selected in the dialog.

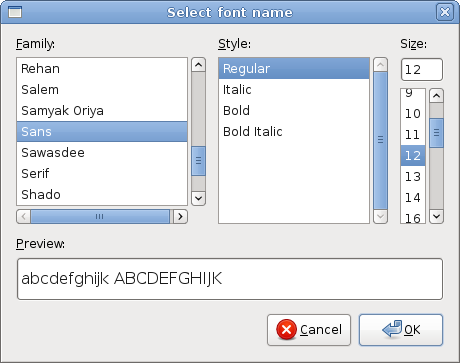

FontSelectionDialog
Figure: FontSelectionDialog

ColorSelectionDialog

ColorSelectionDialog is a dialog for selecting a color.

' ZetCode Mono Visual Basic GTK# tutorial
'
' This program shows the ColorSelectionDialog
'
' author jan bodnar
' last modified May 2009
' website www.zetcode.com


Imports Gtk

Public Class GtkVBApp
    Inherits Window

    Dim label As Label

    Public Sub New

        MyBase.New("Color dialog")

        Me.InitUI

        Me.SetDefaultSize(350, 300)
        Me.SetPosition(WindowPosition.Center)
        AddHandler Me.DeleteEvent, AddressOf Me.OnDelete

        Me.ShowAll

    End Sub

    Private Sub InitUI

        label = New Label("The only victory over love is flight.")
        Dim button As New Button("Select color")

        AddHandler button.Clicked, AddressOf Me.ShowDialog

        Dim fixed As New Fixed
        fixed.Put(button, 100, 30)
        fixed.Put(label, 30, 90)
        Me.Add(fixed)

    End Sub

    Private Sub ShowDialog(ByVal sender As Object, _
            ByVal args As EventArgs)

        Dim cdia As New ColorSelectionDialog("Select color")

        AddHandler cdia.Response, AddressOf Me.SelectColor

        cdia.Run
        cdia.Destroy

    End Sub

    Private Sub SelectColor(ByVal sender As Object, _
            ByVal args As ResponseArgs)

        If args.ResponseId = ResponseType.Ok
            label.ModifyFg(StateType.Normal, _
                sender.ColorSelection.CurrentColor)
        End If

    End Sub


    Sub OnDelete(ByVal sender As Object, _
            ByVal args As DeleteEventArgs)
        Application.Quit
    End Sub

    Public Shared Sub Main

        Application.Init
        Dim app As New GtkVBApp
        Application.Run

    End Sub

End Class

The example is very similar to the previous one. This time we change the color of the label.

Dim cdia As New ColorSelectionDialog("Select color")

We create the ColorSelectionDialog.

If args.ResponseId = ResponseType.Ok
    label.ModifyFg(StateType.Normal, _
        sender.ColorSelection.CurrentColor)
End If

If the user pressed OK, we get the color value and modify the label's color.

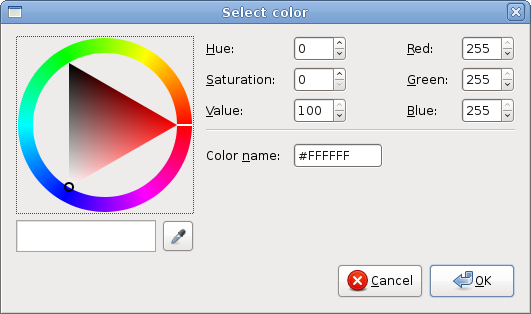

ColorSelectionDialog
Figure: ColorSelectionDialog

In this part of the Visual Basic GTK# tutorial, we presented dialogs.
