Layout management in Ruby Qt

In this part of the Ruby Qt programming tutorial, we will introduce layout managers.

When we design the GUI of our application, we decide what components we will use and how we will organise those components in the application. To organise our components, we use specialised non visible objects called layout managers. There are several options in Qt. We can use absolute positioning, built-in layout managers or create a custom layout manager. We can also visually build the layouts using the Qt Designer.

Qt has some important built-in layout managers. The Qt::VBoxLayout class lines up widgets vertically. Qt::HBoxLayout lines up widgets horizontally. The Qt::GridLayout class lays out widgets in a grid. The grid layout is the most flexible layout manager. The box layouts can be nested into one another to create complex layouts.

Absolute positioning

In most cases, programmers should use layout managers. There are a few situations, where we can use absolute positioning. In absolute positioning, the programmer specifies the position and the size of each widget in pixels. The size and the position of a widget do not change if we resize a window. Applications look different on various platforms, and what looks OK on Linux, might not look OK on Mac OS. Changing fonts in our application might spoil the layout. If we translate our application into another language, we must redo our layout. For all these issues, we use the absolute positioning only when we have a reason to do so.

#!/usr/bin/ruby

# ZetCode Ruby Qt tutorial
#
# In this program, we lay out widgets
# using absolute positioning.
#
# author: Jan Bodnar
# website: www.zetcode.com
# last modified: September 2012


require 'Qt'


class QtApp < Qt::Widget

    def initialize
        super

        setWindowTitle "Absolute"

        init_ui

        resize 300, 280
        move 300, 300

        show
    end

    def init_ui

        setStyleSheet "QWidget { background-color: #414141 }"

        bardejov = Qt::Pixmap.new "bardejov.jpg"
        rotunda = Qt::Pixmap.new "rotunda.jpg"
        mincol = Qt::Pixmap.new "mincol.jpg"

        barLabel = Qt::Label.new self
        barLabel.setPixmap bardejov
        barLabel.move 20, 20

        rotLabel = Qt::Label.new self
        rotLabel.setPixmap rotunda
        rotLabel.move 40, 160

        minLabel = Qt::Label.new self
        minLabel.setPixmap mincol
        minLabel.move 170, 50

    end
end

app = Qt::Application.new ARGV
QtApp.new
app.exec

In this example, we show three images using the absolute positioning.

barLabel = Qt::Label.new self
barLabel.setPixmap bardejov

The Qt::Label widget is used to hold the image.

barLabel.move 20, 20

We use the move method to position the label on the window at x=20, y=20.

When we resize the window, the labels retain their initial size.

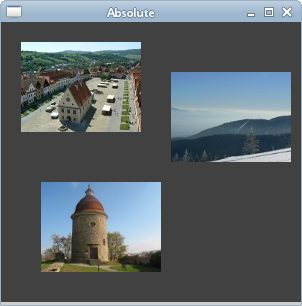

Absolute
Figure: Absolute positioning

Buttons example

In the following example, we will position two buttons in the bottom right corner of the window.

#!/usr/bin/ruby

# ZetCode Ruby Qt tutorial
#
# In this program, we use box layouts
# to position two buttons in the
# bottom right corner of the window.
#
# author: Jan Bodnar
# website: www.zetcode.com
# last modified: September 2012

require 'Qt'


class QtApp < Qt::Widget

    def initialize
        super

        setWindowTitle "Buttons"

        init_ui

        resize 330, 170
        move 300, 300

        show
    end

    def init_ui
        vbox = Qt::VBoxLayout.new self
        hbox = Qt::HBoxLayout.new

        ok = Qt::PushButton.new "OK", self
        apply = Qt::PushButton.new "Apply", self

        hbox.addWidget ok, 1, Qt::AlignRight
        hbox.addWidget apply

        vbox.addStretch 1
        vbox.addLayout hbox
    end

end

app = Qt::Application.new ARGV
QtApp.new
app.exec

We use nested box layouts to get our intended layout.

vbox = Qt::VBoxLayout.new self
hbox = Qt::HBoxLayout.new

We use one vertical and one horizontal box.

ok = Qt::PushButton.new "OK", self
apply = Qt::PushButton.new "Apply", self

These are the two buttons that will go into the bottom right corner of the window.

hbox.addWidget ok, 1, Qt::AlignRight

We put the ok button into the horizontal box. The second parameter is the stretch factor. It expands the area allotted to the ok button. It takes all available space left. The alignment of the windget inside this area is controlled by the third parameter. The Qt::AlignRight will align the button to the right.

vbox.addStretch 1

This line creates a vertically expanded white space, which will push the horizontal box with the buttons to the bottom.

vbox.addLayout hbox

The horizontal box is nested into the vertical box.

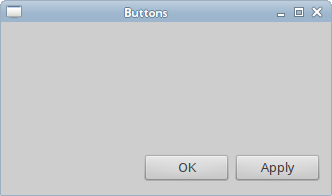

Buttons example
Figure: Buttons example

Windows example

The following is a more complicated example with nested box layouts.

#!/usr/bin/ruby

# ZetCode Ruby Qt tutorial
#
# In this program, use box layouts
# to create a Windows example
#
# author: Jan Bodnar
# website: www.zetcode.com
# last modified: September 2012

require 'Qt'


class QtApp < Qt::Widget

    def initialize
        super

        setWindowTitle "Windows"

        init_ui

        resize 350, 300
        move 300, 300

        show
    end

    def init_ui
        vbox = Qt::VBoxLayout.new self

        vbox1 = Qt::VBoxLayout.new
        hbox1 = Qt::HBoxLayout.new
        hbox2 = Qt::HBoxLayout.new

        windLabel = Qt::Label.new "Windows", self
        edit = Qt::TextEdit.new self
        edit.setEnabled false

        activate = Qt::PushButton.new "Activate", self
        close = Qt::PushButton.new "Close", self
        help = Qt::PushButton.new "Help", self
        ok = Qt::PushButton.new "OK", self

        vbox.addWidget windLabel

        vbox1.addWidget activate
        vbox1.addWidget close, 0, Qt::AlignTop
        hbox1.addWidget edit
        hbox1.addLayout vbox1

        vbox.addLayout hbox1

        hbox2.addWidget help
        hbox2.addStretch 1
        hbox2.addWidget ok

        vbox.addLayout hbox2, 1
        setLayout vbox

    end
end

app = Qt::Application.new ARGV
QtApp.new
app.exec

In this layout, we use two vertical and horizontal boxes.

box = Qt::VBoxLayout.new self

This is the base layout of the example.

windLabel = Qt::Label.new "Windows", self

First goes the label widget. It goes simply to the top of the vertical box.

vbox1.addWidget activate
vbox1.addWidget close, 0, Qt::AlignTop
hbox1.addWidget edit
hbox1.addLayout vbox1

vbox.addLayout hbox1

In the center part of the window we have a text edit widget and two vertically lined up buttons. The buttons go into a vertical box. The buttons are aligned to the top within this vertical box. The vertical box and the text edit go into a horizontal box. This horizontal box goes to the base vertical box, just below the label widget.

hbox2.addWidget help
hbox2.addStretch 1
hbox2.addWidget ok

vbox.addLayout hbox2, 1

The help and the ok button go into another horizontal box. There is an expanded white space between these two buttons. Again, the horizontal box goes to the base vertical box.

setLayout vbox

The base vertical box is set to be the main layout of the window.

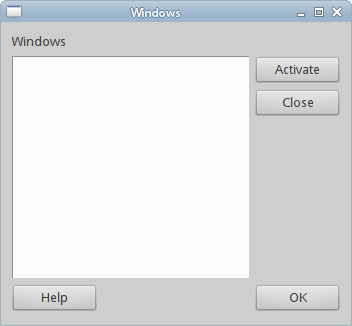

Windows example
Figure: Windows example

New Folder example

In the last example, we use the Qt::GridLayout manager to create a New Folder layout example.

#!/usr/bin/ruby

# ZetCode Ruby Qt tutorial
#
# In this program, use the GridLayout
# to create a New Folder example.
#
# author: Jan Bodnar
# website: www.zetcode.com
# last modified: September 2012

require 'Qt'


class QtApp < Qt::Widget

    def initialize
        super

        setWindowTitle "New Folder"

        init_ui

        resize 300, 300
        move 300, 300

        show
    end

    def init_ui

        grid = Qt::GridLayout.new self

        nameLabel = Qt::Label.new "Name", self
        nameEdit = Qt::LineEdit.new self
        text = Qt::TextEdit.new self
        okButton = Qt::PushButton.new "OK", self
        closeButton = Qt::PushButton.new "Close", self

        grid.addWidget nameLabel, 0, 0
        grid.addWidget nameEdit, 0, 1, 1, 3
        grid.addWidget text, 1, 0, 2, 4
        grid.setColumnStretch 1, 1
        grid.addWidget okButton, 4, 2
        grid.addWidget closeButton, 4, 3

    end
end

app = Qt::Application.new(ARGV)
QtApp.new
app.exec

In our example, we have one label, one line edit, one text edit, and two buttons.

grid = Qt::GridLayout.new self

We create an instance of the Qt::GridLayout manager.

grid.addWidget nameLabel, 0, 0

We place the label widget in the first cell of the grid. The cells count from 0. The last two parameters are the row and column number.

grid.addWidget nameEdit, 0, 1, 1, 3

The line edit widget is placed at the first row, second column. The last two parameters are the row span and the column span. Horizontally, the widget will span three columns.

grid.setColumnStretch 1, 1

The parameters of the method are the column number and the stretch factor. Here we set stretch factor 1 to the second column. This means that this column will take all remaining space. This was set, because we wanted our buttons to retain their initial size.

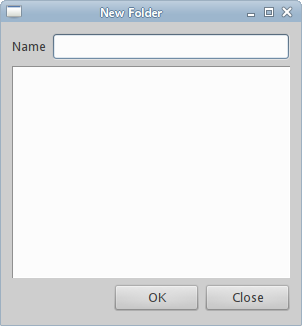

New Folder example
Figure: New Folder example

In this part of the Ruby Qt tutorial, we mentioned layout management of widgets.
