ADO.NET DataSet

The ADO.NET architecture consists of two central parts. The .NET Data Providers and the DataSet. The data providers are components that have been explicitly designed for data manipulation and fast access to data. The DataSet is created for data access independent of any data source. It can be used with multiple and differing data sources, with XML data, or used to manage data local to the application.

A DataSet is a copy of the data and the relations among the data from the database tables. It is created in memory and used when extensive processing on data is needed or when we bind data tables to a Winforms control. When the processing is done, the changes are written to the data source. The DataSet is a disconnected relational structure. This means that the underlying connection does not have to be open during the entire life of a DataSet object. This enables us to use efficiently our available database connections.

A DataSet can be populated in a variety of ways. We can use the Fill() method of the SqliteDataAdapter class. We can create programmatically the DataTable, DataColumn, and DataRow objects. Data can be read from an XML document or from a stream.

A SqliteDataAdapter is an intermediary between the DataSet and the data source. It populates a DataSet and resolves updates with the data source. A DataTable is a representation of a database table in a memory. One or more data tables may be added to a data set. The changes made to the DataSet are saved to data source by the SqliteCommandBuilder class.

The DataGridView control provides a customisable table for displaying data. It allows customisation of cells, rows, columns, and borders through the use of properties. We can use this control to display data with or without an underlying data source.

Creating a DataTable

In the first example, we will work with the DataTable class.

sqlite> CREATE TABLE Friends2(Id INTEGER PRIMARY KEY, Name TEXT);

In this case, the table must be created before we can save any data into it.

using System;
using System.Data;
using Mono.Data.Sqlite;

public class Example
{

    static void Main()
    {
        string cs = "URI=file:test.db";

        using( SqliteConnection con = new SqliteConnection(cs))
        {

            con.Open();

            DataTable table = new DataTable("Friends2");

            DataColumn column;
            DataRow row;

            column = new DataColumn();
            column.DataType = System.Type.GetType("System.Int32");
            column.ColumnName = "Id";
            table.Columns.Add(column);

            column = new DataColumn();
            column.DataType = Type.GetType("System.String");
            column.ColumnName = "Name";
            table.Columns.Add(column);

            row = table.NewRow();
            row["Id"] = 1;
            row["Name"] = "Jane";
            table.Rows.Add(row);

            row = table.NewRow();
            row["Id"] = 2;
            row["Name"] = "Lucy";
            table.Rows.Add(row);

            row = table.NewRow();
            row["Id"] = 3;
            row["Name"] = "Thomas";
            table.Rows.Add(row);

            string sql = "SELECT * FROM Friends2";

            using (SqliteDataAdapter da = new SqliteDataAdapter(sql, con))
            {
                using (new SqliteCommandBuilder(da))
                {
                    da.Fill(table);
                    da.Update(table);
                }
            }

            con.Close();
        }
    }
}

In the example, we create a new DataTable object. We add two columns and three rows to the table. Then we save the data in a new Friends2 database table.

DataTable table = new DataTable("Friends2");

A new DataTable object is created.

column = new DataColumn();
column.DataType = System.Type.GetType("System.Int32");
column.ColumnName = "Id";
table.Columns.Add(column);

A new column is added to the table. We provide a data type and name for the column. The columns of a DataTable are accessed via the Columns property.

row = table.NewRow();
row["Id"] = 1;
row["Name"] = "Jane";
table.Rows.Add(row);

A row is added to the table. The rows of a DataTable are accessed via the Rows property.

string sql = "SELECT * FROM Friends2";

using (SqliteDataAdapter da = new SqliteDataAdapter(sql, con))

The SqliteDataAdapter is an intermediary between the database table and its representation in the memory.

using (new SqliteCommandBuilder(da))

The SqliteCommandBuilder wraps the data adapter. It only needs to be instantiated. We do not work with it directly later.

da.Fill(table);
da.Update(table);

The data adapter is filled with the data from the table. The Update method inserts the data to the database.

Saving XML data

Data from the DataTable can be easily saved in an XML file. There is a WriteXml() method for this task.

using System;
using System.Data;
using Mono.Data.Sqlite;

public class Example
{

    static void Main()
    {
        string cs = "URI=file:test.db";

        using (SqliteConnection con = new SqliteConnection(cs))
        {
            con.Open();

            string stm = "SELECT * FROM Cars LIMIT 5";

            using (SqliteDataAdapter da = new SqliteDataAdapter(stm, con))
            {
                DataSet ds = new DataSet();

                da.Fill(ds, "Cars");
                DataTable dt = ds.Tables["Cars"];

                dt.WriteXml("cars.xml");

                foreach (DataRow row in dt.Rows)
                {
                    foreach (DataColumn col in dt.Columns)
                    {
                        Console.Write(row[col] + " ");
                    }

                    Console.WriteLine();
                }
            }

            con.Close();
        }
    }
}

We print 5 cars from the Cars table. We also save them in an XML file.

using (SqliteDataAdapter da = new SqliteDataAdapter(stm, con))

A SqliteDataAdapter object is created. It takes an SQL statement and a connection as parameters. The SQL statement will be used to retrieve and pass the data by the SqliteDataAdapter.

DataSet ds = new DataSet();

da.Fill(ds, "Cars");

We create the DataSet object. The Fill() method uses the data adapter to retrieve the data from the data source. It creates a new DataTable named Cars and fills it with the retrieved data.

DataTable dt = ds.Tables["Cars"];

The Tables property provides us with the collection of data tables contained in the DataSet. From this collection we retrieve the Cars DataTable.

dt.WriteXml("cars.xml");

We write the data from the data table to an XML file.

foreach (DataRow row in dt.Rows)
{
    foreach (DataColumn col in dt.Columns)
    {
        Console.Write(row[col] + " ");
    }

    Console.WriteLine();
}

We display the contents of the Cars table to the terminal. To traverse the data, we utilise the rows and columns of the DataTable object.

$ dmcs savexml.cs -r:Mono.Data.Sqlite.dll -r:System.Data.dll

To compile the example, we add an additional DLL file System.Data.dll.

Loading XML data

We have shown how to save data in XML files. Now we are going to show, how to load the data from an XML file.

using System;
using System.Data;
using Mono.Data.Sqlite;

public class Example
{

    static void Main()
    {
        string cs = "URI=file:test.db";

        using (SqliteConnection con = new SqliteConnection(cs))
        {
            con.Open();

            DataSet ds = new DataSet();

            ds.ReadXml("cars.xml");
            DataTable dt = ds.Tables["Cars"];

            foreach (DataRow row in dt.Rows)
            {
                foreach (DataColumn col in dt.Columns)
                {
                  Console.Write(row[col] + " ");
                }

                Console.WriteLine();
            }

            con.Close();
        }
    }
}

We read the contents of the cars.xml file into the DataSet. We print all the rows to the terminal.

DataSet ds = new DataSet();

A DataSet object is created.

ds.ReadXml("cars.xml");

The data from the cars.xml is read into the data set.

DataTable dt = ds.Tables["Cars"];

When the data was read into the data set a new DataTable was created. We get this table.

foreach (DataRow row in dt.Rows)
{
    foreach (DataColumn col in dt.Columns)
    {
        Console.Write(row[col] + " ");
    }

    Console.WriteLine();
}

We print all the rows of the data table.

$ mono loadxml.exe
1 Audi 52642
2 Mercedes 57127
3 Skoda 9000
4 Volvo 29000
5 Bentley 350000

Running the example.

DataGridView

In the next example, we are going to bind a table to a Winforms DataGridView control.

using System;
using System.Windows.Forms;
using System.Drawing;
using System.Data;
using Mono.Data.Sqlite;

class MForm : Form
{

    private DataGridView dgv = null;
    private DataSet ds = null;

    public MForm()
    {

       this.Text = "DataGridView";
       this.Size = new Size(450, 350);

       this.InitUI();
       this.InitData();

       this.CenterToScreen();
    }

    void InitUI()
    {
        dgv = new DataGridView();

        dgv.Location = new Point(8, 0);
        dgv.Size = new Size(350, 300);
        dgv.TabIndex = 0;
        dgv.Parent = this;
    }

    void InitData()
    {
        string cs = "URI=file:test.db";

        string stm = "SELECT * FROM Cars";

        using (SqliteConnection con = new SqliteConnection(cs))
        {
            con.Open();

            ds = new DataSet();

            using (SqliteDataAdapter da = new SqliteDataAdapter(stm, con))
            {
                da.Fill(ds, "Cars");
                dgv.DataSource = ds.Tables["Cars"];
            }

            con.Close();
        }
    }
}

class MApplication
{
    public static void Main()
    {
        Application.Run(new MForm());
    }
}

In this example, we bind the Cars table to the Winforms DataGridView control.

using System.Windows.Forms;
using System.Drawing;

These two namespaces are for the GUI.

this.InitUI();
this.InitData();

Inside the InitUI() method, we build the user interface. In the InitData() method, we connect to the database, retrieve the data into the DataSet and bind it to the DataGrid control.

dgv = new DataGridView();

The DataGridView control is created.

string stm = "SELECT * FROM Cars";

We will display the data from the Cars table in the DataGridView control.

dgv.DataSource = ds.Tables["Cars"];

We bind the DataSource property of the DataGridView control to the chosen table.

$ dmcs datagridview.cs -r:System.Data.dll -r:System.Drawing.dll
    -r:Mono.Data.Sqlite.dll -r:System.Windows.Forms.dll

To compile the example, we must include additional DLLs. The DLL for SQLite data provider, for the Winforms, Drawing, and for Data.

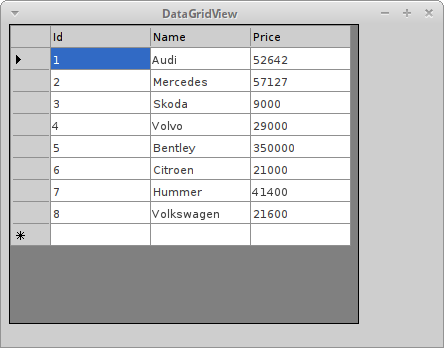

DataGridView
Figure: DataGridView

In this part of the SQLite C# tutorial, we have worked with the DataSet, DataTable, SqliteDataAdapter, SqliteCommandBuilder, and DataGridView classes.
